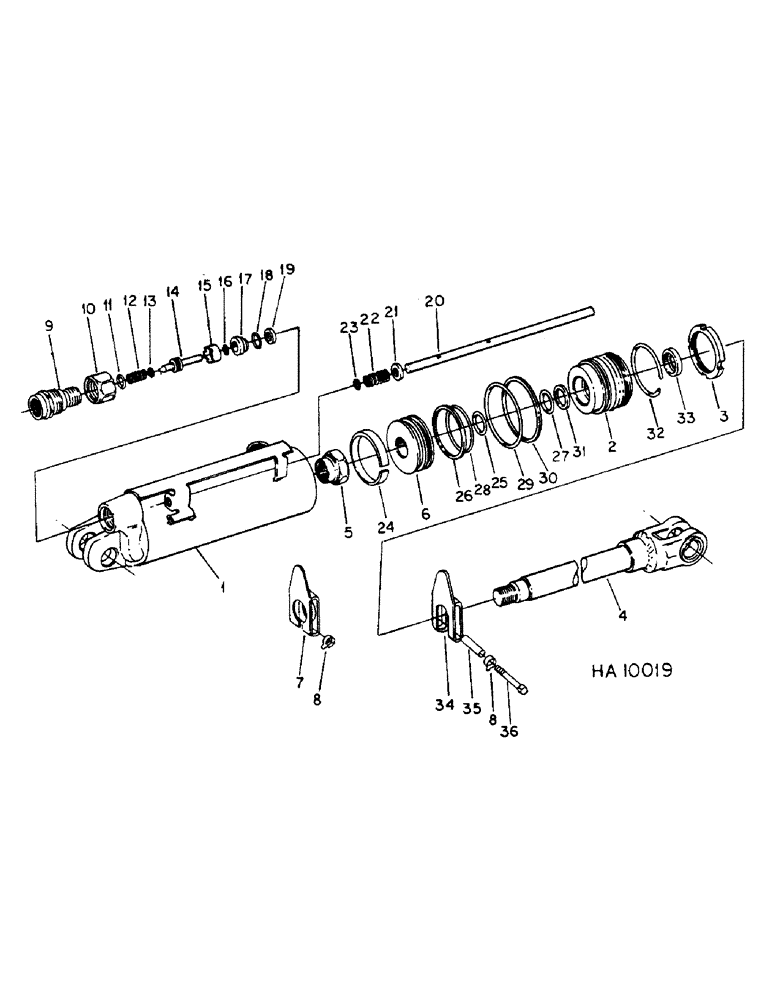

Запчасти Case IH 645 (L-16) - HYDRAULIC CYLINDERS, HYDRAULIC CYLINDER, CESSNA, 3.5 X 8 DOUBLE ACTING
№
Артикул
Название
Примечание
Количество
812368C91
CYLINDER
ASSY, 3.5 x 8 DA, Cessna
1шт.
1
BODY, cylinder (NSS)
1шт.
2
813007C1
END
cylinder bearing
1шт.
3
573697R1
BEARING LOCK NUT
bearing end
1шт.
4
812658C1
ROD
piston
1шт.
5
691547R1
NUT
piston rod
1шт.
6
813011C1
PISTON
cylinder
1шт.
7
(Not used this application)
1шт.
8
813015C1
LOCK WASHER
hex lock
1шт.
9
813057C1
FITTING
stroke control
1шт.
10
813016C1
NUT
stroke control fitting
1шт.
11
O-RING, .875 x 1.063 x .094, note (NSS)
1шт.
12
813078C1
SPRING
plunger
1шт.
13
O-RING, .103 x .160 ID, note (NSS)
1шт.
14
813079C1
PLUNGER
stroke control
1шт.
15
813088C1
SPACER
plunger
1шт.
16
SEAL, plunger stroke (NSS)
1шт.
17
813105C1
RETAINER
plunger
1шт.
18
O-RING, .625 x .813 x .094, note (NSS)
1шт.
19
SEAL, control plunger wiper, note (NSS)
1шт.
20
813106C1
ROD
stroke control push
1шт.
17183R1
LOCK PIN,Sl Spring, 5/32" x 5/8"
PIN, 5/32" x 5/8", Slotted
2шт.
21
23408R1
WASHER
.469 x .750 x .054
1шт.
22
813107C1
SPRING
push rod
1шт.
23
(Not used this application)
1шт.
24
RING, piston wear, note (NSS)
1шт.
25
O-RING, 1.250 x 1.5000 x .125, note (NSS)
1шт.
26
RING, piston slipper teflon, note (NSS)
1шт.
27
O-RING, 1.250 x 1.500 x .125, note (NSS)
1шт.
28
O-RING, 3.125 x 3.375 x .125, note (NSS)
1шт.
29
O-RING, 3.250 x 3.500 x .125, note (NSS)
1шт.
30
WASHER, bearing end o-ring back-up, note (NSS)
1шт.
31
WASHER, bearing end o-ring back-up, note (NSS)
1шт.
32
RING, end bearing lock, note (NSS)
1шт.
33
SEAL, piston rod oil, note (NSS)
1шт.
34
811549C1
STOP
piston rod
1шт.
34
810248C1
STOP
clamp, March 1981 & since
1шт.
35
811550C1
SPACER
stop, prior to March 1981
1шт.
36
181651
SHIELD
BOLT, 3/8-NF x 2-3/4 type 5
1шт.
9413243
LOCK NUT,3/8"-24, GB
NUT, 3/8-NF cad P/T lock type 5
1шт.
22655R1
WASHER
.406 x .812 x .051 cad
1шт.
813108C1
SEAL KIT
hyd cyl repair, consists of ref nos 11, 13, 16, 18, 19, 24 thru 23
1шт.
Выбрано товаров: 42
