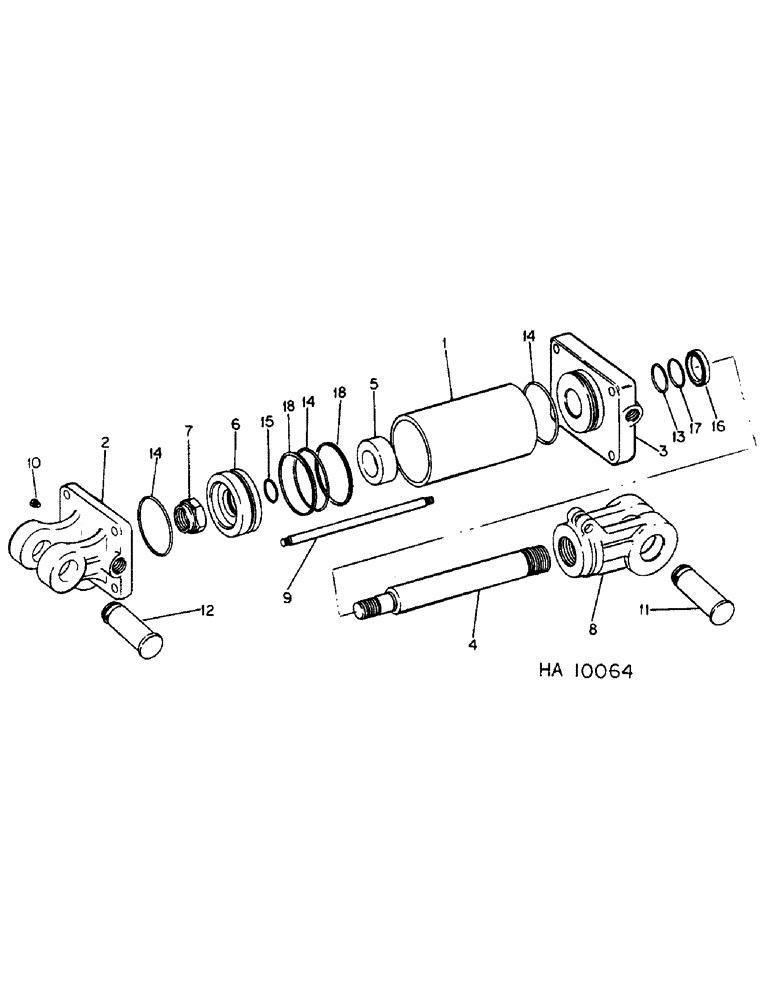

Запчасти Case IH 645 (L-14) - HYDRAULIC CYLINDERS, HYDRAULIC CYLINDER, CROSS, 3.0 X 48 DOUBLE ACTING

811677C91

CYLINDER

ASSY, 3.0 x 48 DA, Cross

1шт.

1

TUBE, cylinder body (NSS)

1шт.

2

812165C2

CLEVIS

cylinder base

1шт.

3

812166C2

END

cylinder

1шт.

4

812265C1

ROD

piston, w/1-14-12 UNF rod thread

1шт.

5

812268C1

SPACER

piston, 4-1/4 inch in length

1шт.

6

812169C1

PISTON

cylinder

1шт.

7

9413972

LOCK NUT,3/4"-16, GB

NUT, 3/4-NF cad P/T lock type 5

1шт.

8

812266C1

CLEVIS

cylinder piston, w/1-1/4-12 UNF rod thread

1шт.

138244

HEX SOC SCREW,3/8" - 16 x 1 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

9

812267C1

ROD

cylinder tie, 57 inch w/1/2 inch thread

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

10

(Not used this application)

1шт.

11

812171C1

PIN

clevis mounting

1шт.

591107R1

COTTER PIN

quick attachable cot

1шт.

12

812171C1

PIN

clevis mounting

1шт.

591107R1

COTTER PIN

quick attachable cot

1шт.

13

O-RING, 1.250 x 1.500 x .125, note (NSS)

2шт.

14

O-RING, 2.625 x 3.000 x .188, note (NSS)

3шт.

15

O-RING, .750 x 1.000 x .125, note (NSS)

1шт.

16

WIPER, piston rod, note (NSS)

1шт.

17

WASHER, back-up, note (NSS)

1шт.

18

WASHER, back-up, note (NSS)

2шт.

812173C1

SEAL KIT

KIT, seal repair service, consists of ref nos 13 thru 18

1шт.
