(B-04[A]) - 645 VIBRA CHISEL, TRAIL BEHIND, WEIGHT TRANSFER SUPPORT STRAP, PRIOR TO JUNE 1973 SEASON

Запчасти Case IH 645 (B-04[A]) - 645 VIBRA CHISEL, TRAIL BEHIND, WEIGHT TRANSFER SUPPORT STRAP, PRIOR TO JUNE 1973 SEASON

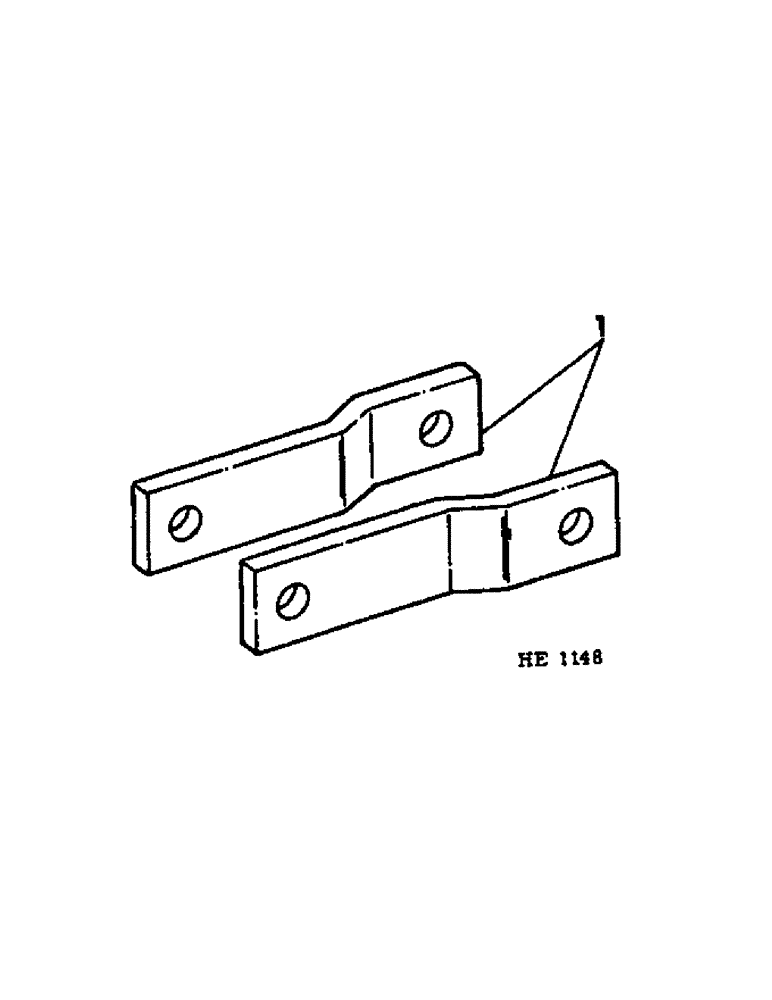

Схема запчастей Case IH 645 - (B-04[A]) - 645 VIBRA CHISEL, TRAIL BEHIND, WEIGHT TRANSFER SUPPORT STRAP, PRIOR TO JUNE 1973 SEASON
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

811372C1

STRAP

weight transfer

2шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2.250 hd type 5

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

467750R1

WASHER

.781 x 1.500 x .105

1шт.
