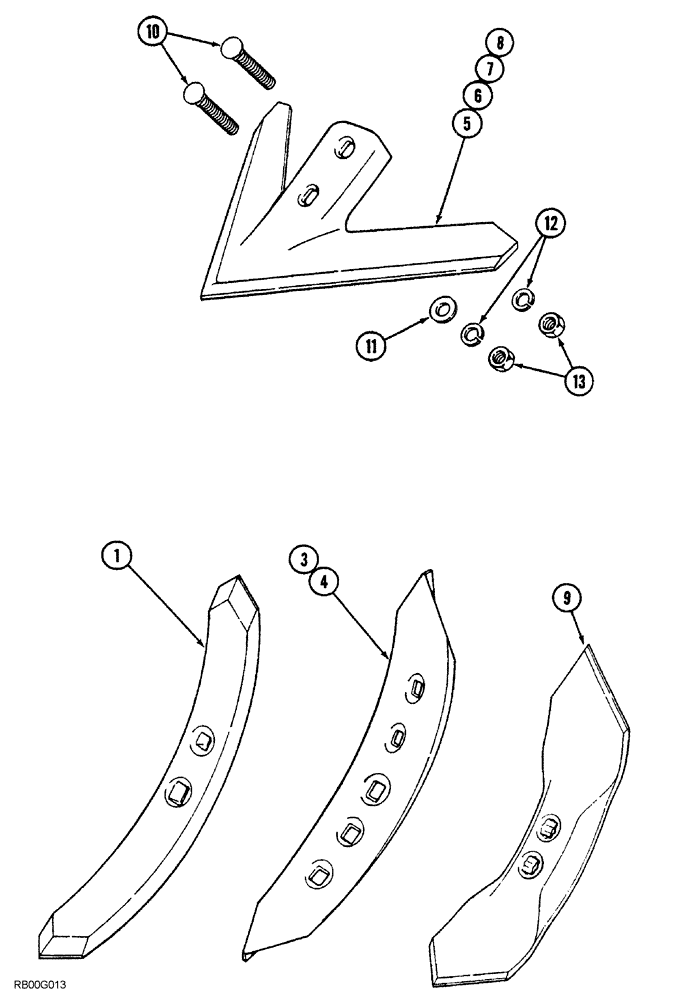

Запчасти Case IH 5850 (09-94) - GROUND WORKING TOOLS (09) - CHASSIS

1

601986R1

POINT

reversible chisel, 51 mm/2" wide x 16mm/5/8" thick, if used

1шт.

3

594545R1

SHOVEL

twisted, L.H., 76 mm/3" wide, if used

1шт.

4

594546R1

SHOVEL

twisted, R.H., 76 mm/3" wide, if used

1шт.

5

133766A1

SWEEP

10"

1шт.

6

133768A1

SWEEP

14"

1шт.

6

248524A1

SWEEP

SWEEP, 5/16",14", 50 DEG.

1шт.

7

133769A1

SWEEP

16"

1шт.

7

248525A1

SWEEP

SWEEP, 5/16",16", 50 DRG.

1шт.

8

133770A1

SWEEP

18"

1шт.

9

602595R3

SHOVEL

114 mm/4-1/2" wide

1шт.

10

419-3840

CARRIAGE BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

BOLT plow, 1/2" NC x 2-1/2"

1шт.

11

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

flat, 17/32" x 1-1/4" x 7/64"

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

1шт.
