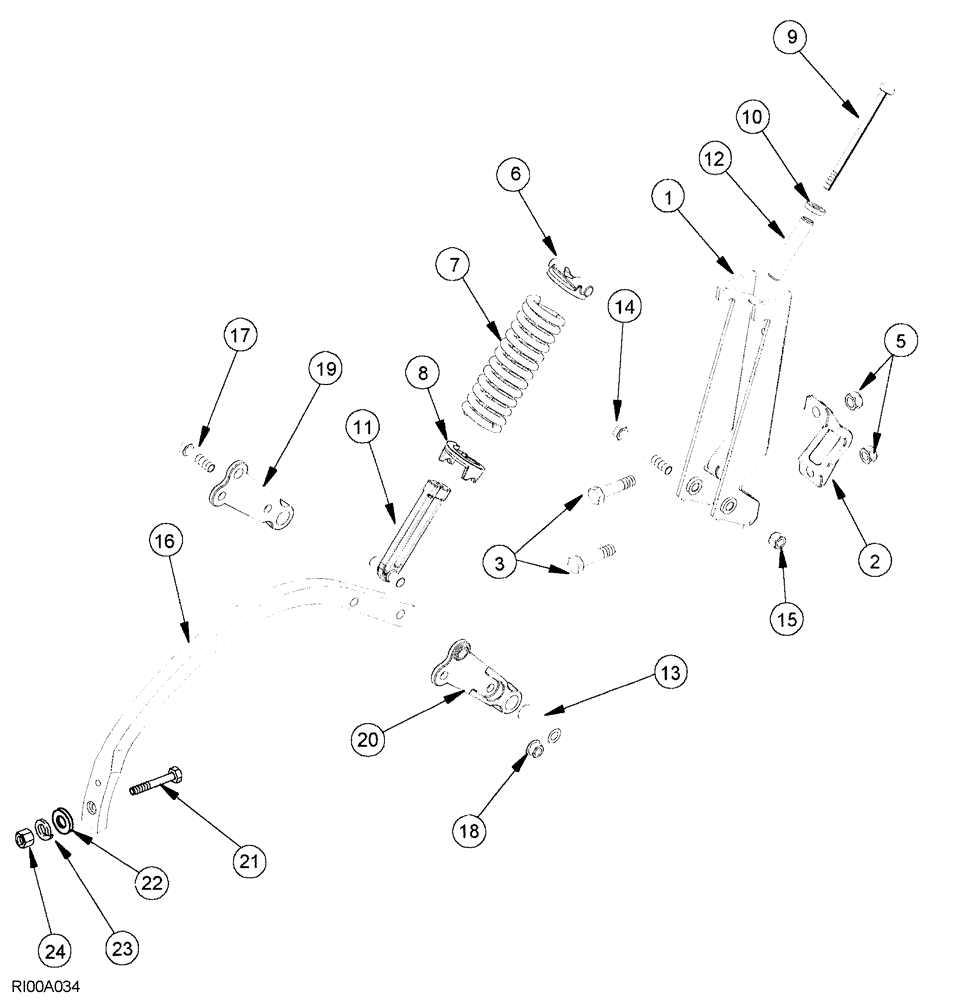

Запчасти Case IH 5850 (09-92) - SHANK ASSEMBLY (09) - CHASSIS

304669A1

SHANK ASSEMBLY, 400 pound trip pressure

1шт.

304670A1

SHANK ASSEMBLY, 600 pound trip pressure

1шт.

1

293596A1

BRACKET

head

1шт.

2

300538A1

BRACKET

bracket

1шт.

3

413-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

hex, 7/8" NC x 3-1/2"

2шт.

5

425-1014

NUT,7/8"-9, G5

2шт.

6

293785A1

PIVOT

spring

1шт.

7

109018A1

SPRING

trip, 400 pound trip pressure

1шт.

7

127680A1

SPRING

trip, 600 pound trip pressure

1шт.

8

300602A1

BASE

PLUG spring

1шт.

9

109741A1

BOLT

BOLT tension

1шт.

10

337949A1

WASHER

wear

1шт.

11

293781A1

BRACKET

tension

1шт.

12

128530A2

BUSHING,19.8mm ID x 28.6mm OD x 146mm L

wear

1шт.

13

292646A1

SLEEVE,19.8mm ID x 34.85mm OD x 100mm L

wear

1шт.

14

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.

15

232-41412

LOCK NUT,3/4"-10, GC

1шт.

16

292881A1

SHANK

chisel

1шт.

17

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4" NC x 3"

2шт.

18

231-51412

FLANGE NUT,Flg, USR, 3/4"-10

2шт.

19

316332A1

PLATE

PIVOT shank, L.H.

1шт.

20

316333A1

PLATE

PIVOT shank, R.H.

1шт.

21

419-3840

CARRIAGE BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

BOLT plow, 1/2" NC x 2-1/2"

2шт.

22

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

flat, 17/32" x 1-1/4" x 7/64"

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

24

425-108

NUT,1/2" - 13, Gr 5

2шт.
