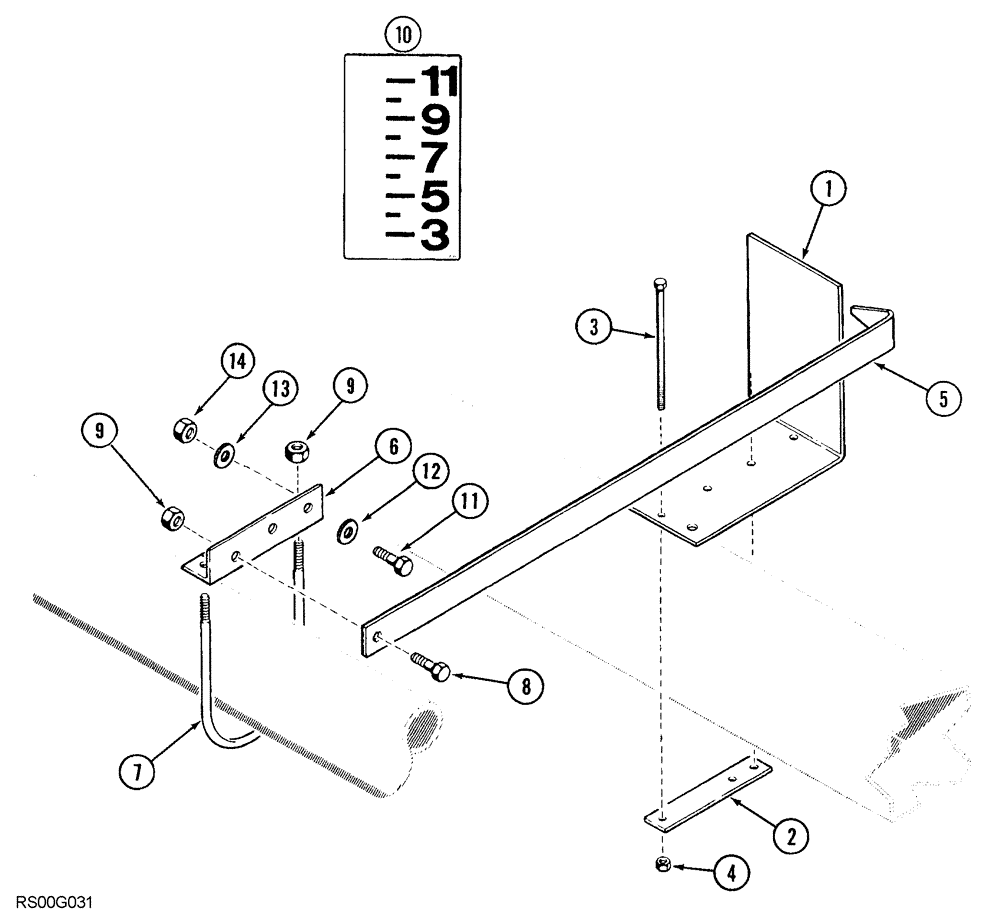

Запчасти Case IH 5850 (09-90) - DEPTH GAUGE AND MOUNTING (09) - CHASSIS

1

181955A1

SUPPORT

BRACKET depth gauge

1шт.

2

91371C1

BAR

clamping, depth gauge

1шт.

3

413-480

BOLT,Hex, 1/4" - 20 x 5", Gr 5

BOLT hex, 1/4" NC x 5"

2шт.

4

231-4144

NUT,1/4"-20, GB

2шт.

5

181954A1

BAR

depth indicator

1шт.

6

91370C2

ANGLE

BRACKET bar, depth indicator

1шт.

7

26943R1

U-BOLT,3/8" - 16 x 5 1/2"

BOLT "U" 3/8" NC

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

231-4116

NUT,3/8"-16, GB

hex, self-locking, 3/8" NC

3шт.

10

181978A1

DECAL

depth gauge

1шт.

11

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

49 through 53 foot wide with floating hitch

2шт.

12

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), 49 through 53 foot wide with floating hitch

2шт.

13

492-11025

LOCK WASHER,1/4"

49 through 53 foot wide with floating hitch

2шт.

14

425-104

NUT,1/4"-20, Cl 5

9 through 53 foot wide with floating hitch

2шт.
