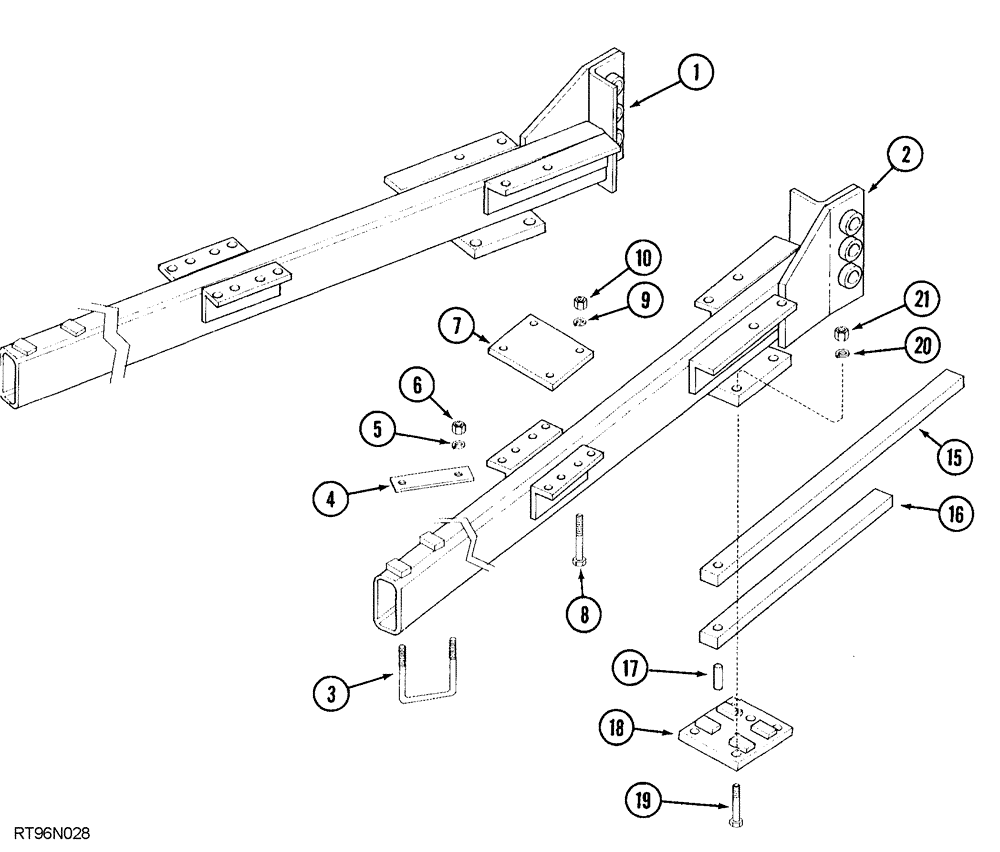

Запчасти Case IH 5850 (09-84) - FLOATING HITCH, HITCH BEAMS (09) - CHASSIS

1

140390A1

HITCH ASSY

BEAM, L.H.

1шт.

2

140391A1

HITCH ASSY

BEAM, R.H.

1шт.

3

812864C1

U-BOLT,5/8" - 11 x 11.6"

BOLT "U" 5/8" NC x 11-5/8"

2шт.

4

812865C1

BAR

clamp

2шт.

5

492-11062

BEARING WASHER,5/8"

4шт.

6

425-1010

NUT,5/8"-11, G5

4шт.

7

222249A1

LARGE PLATE

PLATE, LARGE clamping, vertical fold

4шт.

7

222249A1

LARGE PLATE

PLATE, LARGE clamping, double fold

2шт.

8

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

16шт.

9

492-11062

BEARING WASHER,5/8"

16шт.

10

425-1010

NUT,5/8"-11, G5

16шт.

15

187525A1

SPRING

leaf

2шт.

16

187526A1

SPRING

leaf, helper

2шт.

17

224013A1

ROD

spring aligning

2шт.

18

223902A2

PLATE ASSY.

spring clamping

2шт.

19

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

hex, 3/4" NC x 5-1/2"

8шт.

20

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

21

425-1012

NUT,3/4"-10, G5

8шт.
