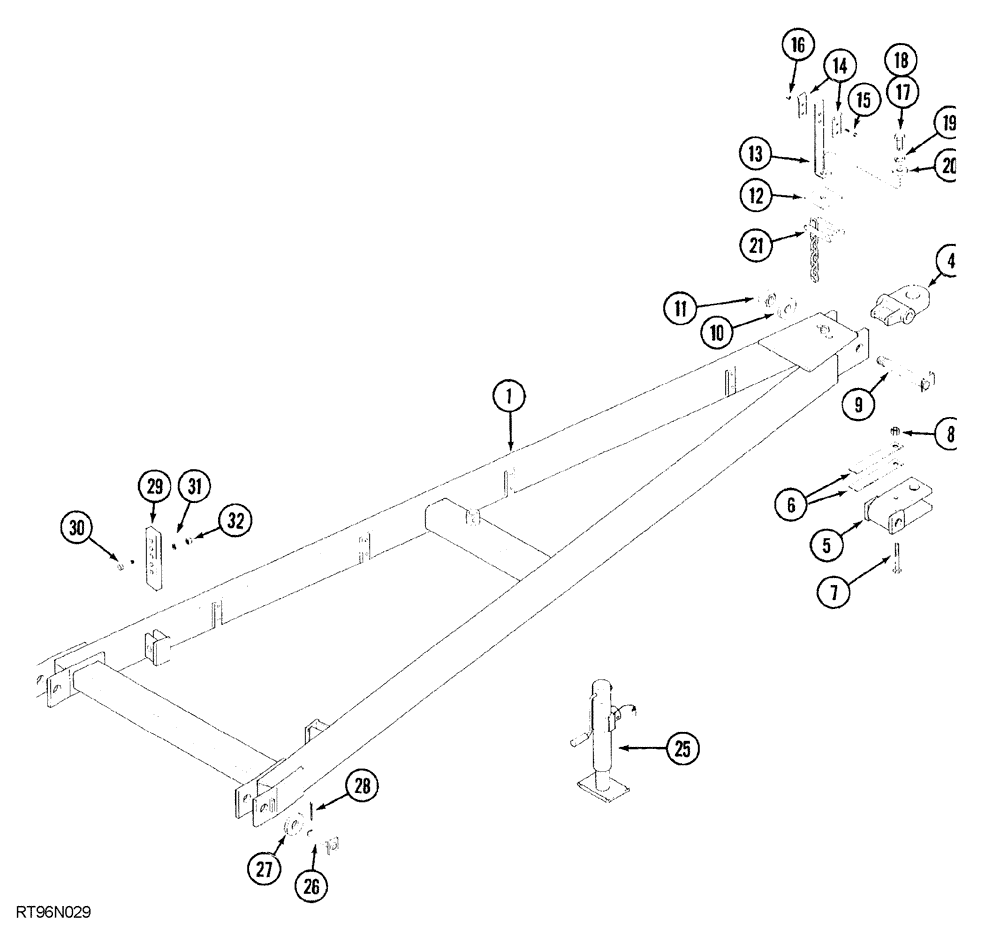

Запчасти Case IH 5850 (09-82) - FLOATING HITCH, FRONT HITCH (09) - CHASSIS

1

140400A1

HITCH ASSY

front

1шт.

4

61023C3

HITCH

hitch, tongue type, if used

1шт.

5

129900C2

CLEVIS

hitch, clevis type, if used

1шт.

6

540475R1

SPRING

clevis

2шт.

7

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

8

231-41110

LOCK NUT,5/8"-11, GB

1шт.

9

121362C1

PIN

hitch clevis

1шт.

10

495-21138

WASHER,1 1/4"

flat, 1-3/8" x 3" x 5/32"

4шт.

11

28748R1

LOCK NUT,1 1/4"-7, G5

hex, self-locking, 1-1/4" NC

1шт.

12

822395C1

BAR

PLATE mounting, hose support bracket

1шт.

13

283538A1

SUPPORT

hydraulic hose

1шт.

14

58644C1

HOLDER

hydraulic hose

2шт.

15

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

16

231-4118

LOCK NUT,1/2"-13, GB

hex, 1/2" NC

2шт.

17

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

BOLT hex, 3/4" NC x 1-1/4"

1шт.

18

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

1шт.

19

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

20

495-81042

WASHER,25/32" x 1 1/2" x .120"

flat, 25/32" x 1-1/2" x 7/64"

1шт.

21

REF

INSTRUCTION

CHAIN safety, see Figure 09-86

1шт.

25

121557A1

JACK ASSY.

hitch

1шт.

26

1960442C1

PIN

linkage

2шт.

27

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

flat, 1-11/32" x 2" x 7/64"

2шт.

28

432-2032

COTTER PIN,5/16" x 2"

5/16" x 2"

2шт.

29

251554A1

BAR

adjusting

2шт.

30

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

BOLT hex, 3/4" NC x 3-1/4"

2шт.

31

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

32

425-1012

NUT,3/4"-10, G5

2шт.
