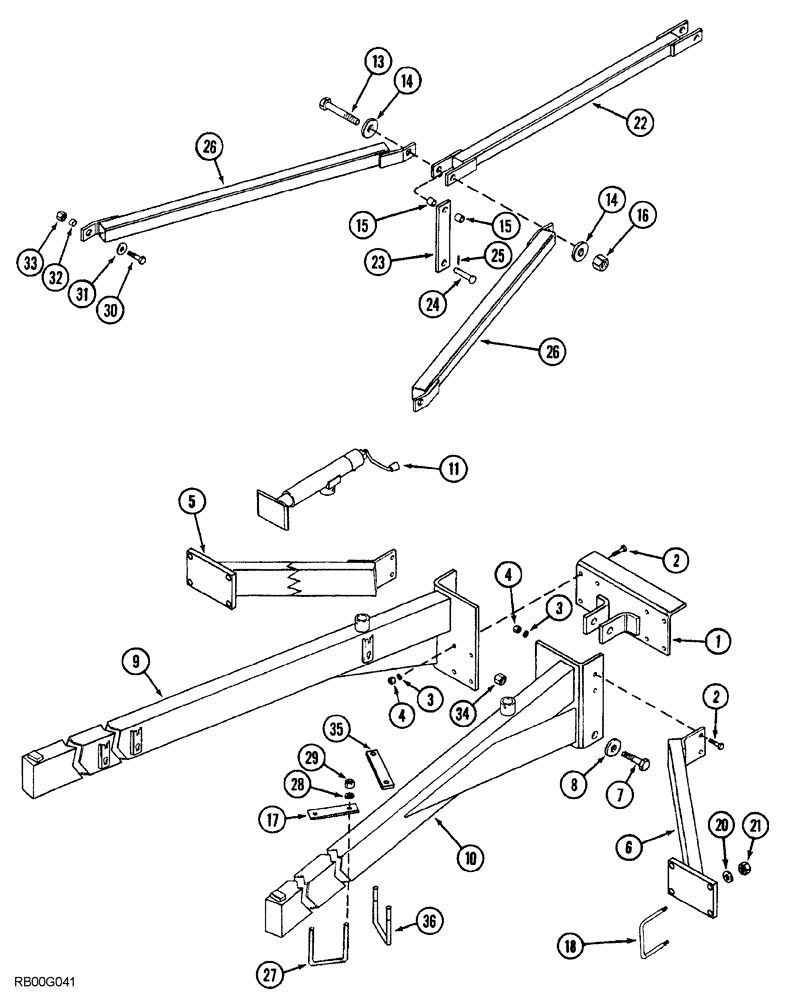

Запчасти Case IH 5850 (09-80) - LEVEL LIFT HITCH, BRACES AND BEAMS, VERTICAL FOLD AND DOUBLE FOLD (09) - CHASSIS

1

1284134C2

ANGLE

BRACKET hitch connecting

1шт.

2

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

3

492-11062

BEARING WASHER,5/8"

8шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

142346A1

HITCH ASSY

BRACE outer, L.H.

1шт.

6

142347A1

HITCH ASSY

BRACE outer, R.H.

1шт.

7

252079A1

BOLT

hex

2шт.

8

496-81017

WASHER,1 3/8" x 2 1/2" x .156", HDN

flat, 1-3/8" x 2-1/2" x 1/8"

2шт.

9

97700C1

TRAILER HITCH

BEAM, L.H.

1шт.

10

97701C1

TRAILER HITCH

BEAM, R.H.

1шт.

11

121557A1

JACK ASSY.

hitch

1шт.

13

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

BOLT hex, 1" NC x 6"

1шт.

14

495-21106

WASHER,1"

flat, 1-1/16" x 2-1/2" x 5/32"

2шт.

15

571823R1

SPACER,1 1/4" Tube x 1"

SPACER connecting tube, front

2шт.

16

231-41116

NUT,1"-8, GB

hex, self-locking, 1" NC

1шт.

17

812865C1

BAR

clamp

6шт.

18

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC

4шт.

20

492-11062

BEARING WASHER,5/8"

8шт.

21

425-1010

NUT,5/8"-11, G5

8шт.

22

1284408C1

TUBE,1330 mm Length

connecting, front

1шт.

23

1284496C1

BAR

pivot, intermediate

1шт.

24

439-51644

HEADED PIN,1" x 2 3/4", G5

headed, 1" x 2-3/4"

1шт.

25

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

1шт.

26

143019A1

TUBE,2353 mm Length

connecting, rear

2шт.

27

812864C1

U-BOLT,5/8" - 11 x 11.6"

BOLT "U" 5/8" NC x 11-5/8"

6шт.

28

492-11062

BEARING WASHER,5/8"

16шт.

29

425-1010

NUT,5/8"-11, G5

16шт.

30

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4" NC x 2-3/4"

2шт.

31

495-81045

WASHER,25/32" x 1 3/4" x .179"

flat, 25/32" x 1-3/4" x 11/64"

2шт.

32

1333812C1

BUSHING,19.3mm ID x 25.4mm OD x 15mm L

connecting tube, rear

2шт.

33

231-41112

LOCK NUT,3/4"-10, GB

2шт.

34

28748R1

LOCK NUT,1 1/4"-7, G5

hex, self-locking, 1-1/4" NC

2шт.

35

181759A1

BAR

clamping

4шт.

36

413-10192

BOLT,Hex, 5/8" - 11 x 12", Gr 5

BOLT hex, 5/8" NC x 12"

4шт.
