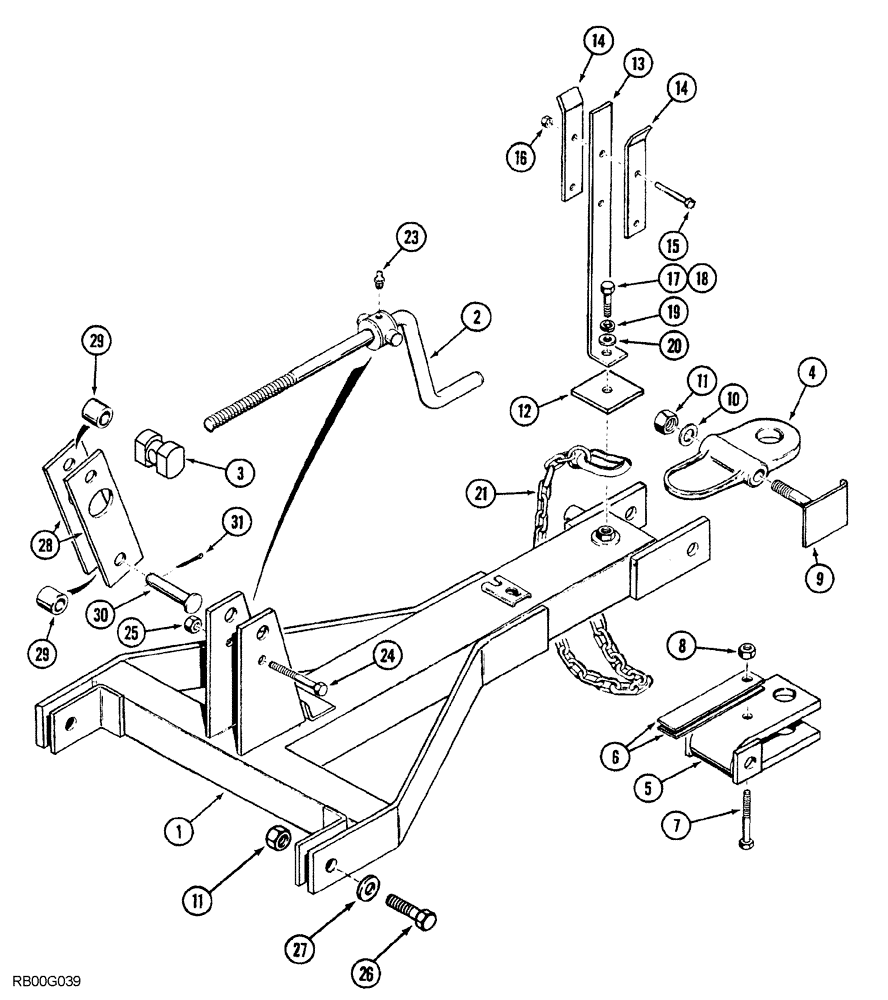

Запчасти Case IH 5850 (09-76) - LEVEL LIFT HITCH, FRONT ADJUSTABLE HITCH (09) - CHASSIS

1

1284422C3

HITCH ASSY, TRAILER

front

1шт.

2

1284429C1

CRANK

ASSEMBLY front adjustable hitch

1шт.

3

60147C3

LINK

SWIVEL crank

1шт.

4

61023C3

HITCH

hitch, tongue type, if used

1шт.

5

129900C2

CLEVIS

hitch, clevis type, if used

1шт.

6

540475R1

SPRING

clevis

2шт.

7

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

8

231-41110

LOCK NUT,5/8"-11, GB

1шт.

9

121362C1

PIN

hitch clevis

1шт.

10

495-21138

WASHER,1 1/4"

flat, 1-3/8" x 3" x 5/32"

4шт.

11

28748R1

LOCK NUT,1 1/4"-7, G5

hex, self-locking, 1-1/4" NC

3шт.

12

822395C1

BAR

PLATE mounting, hose support bracket, 37 foot through 53 foot wide only

1шт.

13

283538A1

SUPPORT

hydraulic hose

1шт.

14

58644C1

HOLDER

hydraulic hose

2шт.

15

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

16

231-4118

LOCK NUT,1/2"-13, GB

hex, 1/2" NC

2шт.

17

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

BOLT hex, 3/4" NC x 1-1/4"

1шт.

18

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

1шт.

19

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

20

495-81042

WASHER,25/32" x 1 1/2" x .120"

flat 25/32" x 1-1/2" x 7/64"

1шт.

21

REF

INSTRUCTION

CHAIN safety, see Figure 09-86

1шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

24

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

hex, 5/8" NC x 5-1/2"

1шт.

25

231-41110

LOCK NUT,5/8"-11, GB

1шт.

26

252079A1

BOLT

hex

2шт.

27

496-81017

WASHER,1 3/8" x 2 1/2" x .156", HDN

flat, 1-3/8" x 2-1/2" x 1/8"

4шт.

28

1284425C1

BAR

pivot, front

1шт.

29

21696R1

SPACER,1" Pipe x 1 3/8"

pipe, 1" ID x 1-3/8"

2шт.

30

439-51672

HEADED PIN,25.4mm OD x 114.3mm L

headed, 1" x 3-3/4"

2шт.

31

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.
