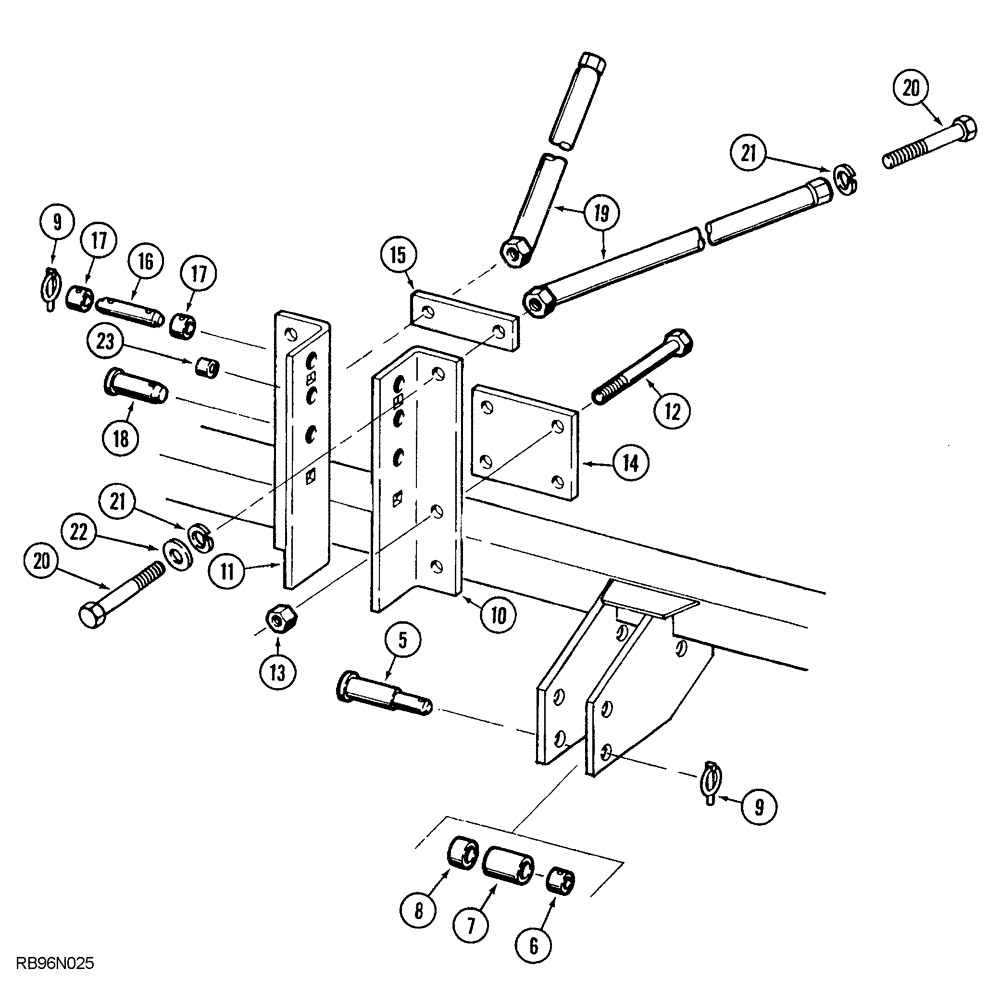

Запчасти Case IH 5850 (09-72) - THREE POINT HITCH, DIRECT MOUNTED (09) - CHASSIS

5

599799R1

PIN

hitch, outer

2шт.

6

599800R1

BUSHING

hitch pin

2шт.

7

599801R1

SPACER

pin, inner

2шт.

8

599802R1

SPACER

pin, outer

2шт.

9

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

klik

3-4шт.

10

812002C2

ANGLE

BRACKET mounting, hitch, L.H.

1шт.

11

812011C2

ANGLE

BRACKET mounting, hitch, R.H.

1шт.

12

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4" NC x 6"

4шт.

13

425-1012

NUT,3/4"-10, G5

4шт.

14

812007C1

BAR

PLATE support, mounting bracket, hitch

1шт.

15

812024C1

BAR

PLATE mounting, truss rod

1шт.

16

599803R1

PIN

hitch, center, category 2 hitch and no quick coupler, if used

1шт.

17

599804R1

BUSHING

center hitch pin, if used

2шт.

18

392211R2

PIN

center, category 3 hitch and no quick coupler, if used

1шт.

19

251326A1

ROD

truss, three point hitch

2шт.

20

413-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5

BOLT hex, 1" NC x 2-1/4"

4шт.

21

492-11100

LOCK WASHER,1"

1"

4шт.

22

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

2шт.

23

97772C1

BUSHING

mast

2шт.
