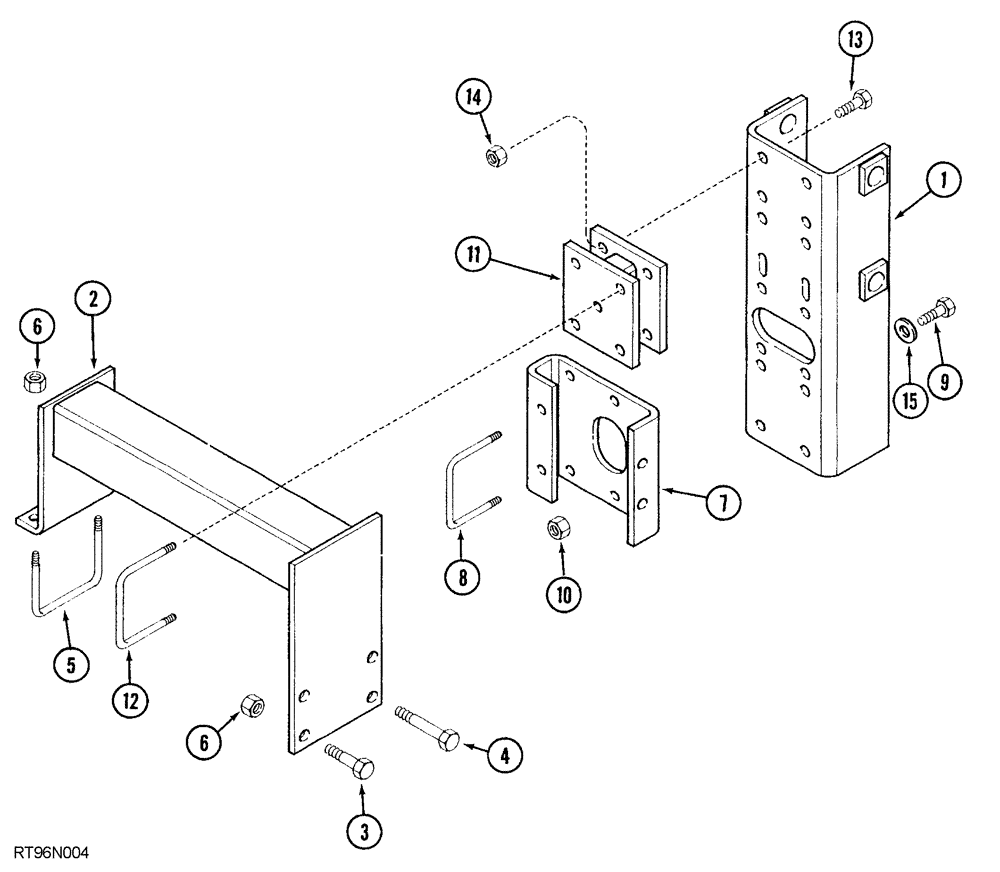

Запчасти Case IH 5850 (09-70) - CASTER WHEEL MOUNTING, 12 FOOT WING VERTICAL FOLD, 6 FOOT SECONDARY WING DOUBLE FOLD (09) - CHASSIS

1

226538A1

BRACKET

mounting, caster wheel

2шт.

2

138985A1

CASING

TOWER mounting, caster wheel

2шт.

3

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.

4

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

BOLT hex, 5/8" NC x 3-3/4"

6шт.

5

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC

2шт.

6

231-42110

LOCK NUT,Hex, 5/8"-11, GB

14шт.

7

142351A1

EXTENSION

mounting bracket

2шт.

8

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC

2шт.

9

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

10

231-42110

LOCK NUT,Hex, 5/8"-11, GB

12шт.

11

140988A1

SPACER

mounting

2шт.

12

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC

4шт.

13

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

14

231-42110

LOCK NUT,Hex, 5/8"-11, GB

16шт.

15

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

2шт.
