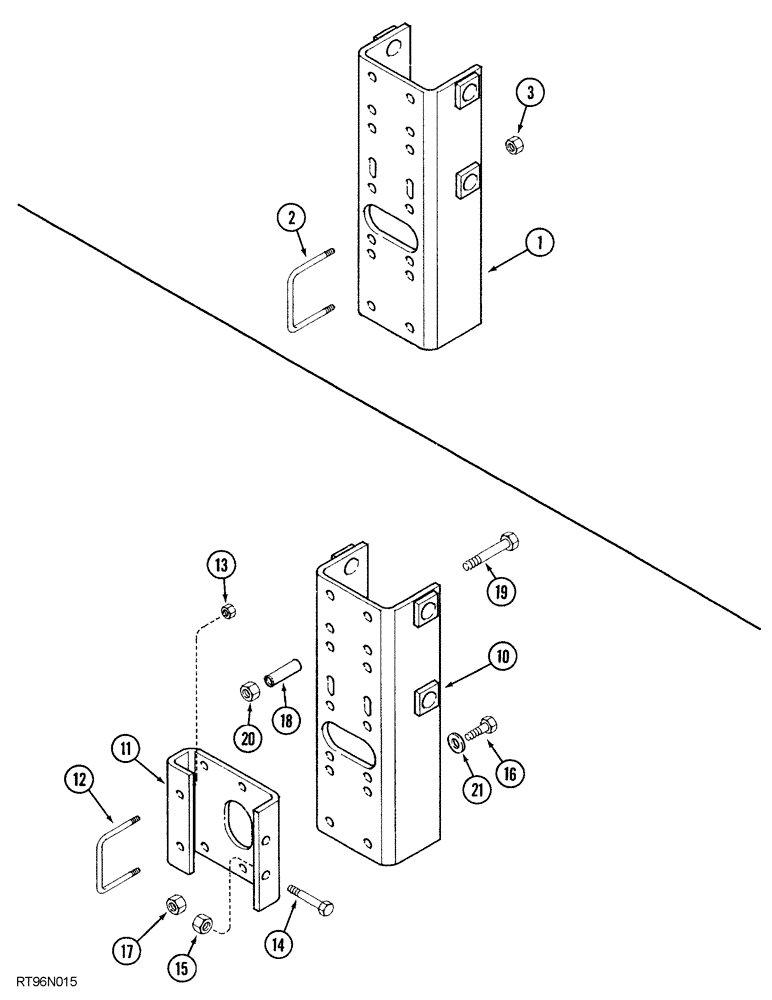

Запчасти Case IH 5850 (09-68) - CASTER WHEEL MOUNTING (09) - CHASSIS

1

226538A1

BRACKET

mounting, caster wheel, main frame

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC, main frame

8шт.

3

231-42110

LOCK NUT,Hex, 5/8"-11, GB

Main frame

16шт.

10

226538A1

BRACKET

mounting, caster wheel, 12 foot primary wing double fold

2шт.

11

142351A1

EXTENSION

mounting bracket, 12 foot primary wing double fold

2шт.

12

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC, 12 foot primary wing double fold

2шт.

13

231-42110

LOCK NUT,Hex, 5/8"-11, GB

12 foot primary wing double fold

4шт.

14

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

hex, 5/8" NC x 4", 12 foot primary wing double fold

4шт.

15

231-42110

LOCK NUT,Hex, 5/8"-11, GB

12 foot primary wing double fold

4шт.

16

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

12 foot primary wing double fold

8шт.

17

231-42110

LOCK NUT,Hex, 5/8"-11, GB

12 foot primary wing double fold

8шт.

18

88909C1

TUBE,16.129 mm ID x 22.352 mm OD x 76.2 mm L

SPACER bracket, 12 foot primary wing double fold

4шт.

19

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

12 foot primary wing double fold

4шт.

20

231-42110

LOCK NUT,Hex, 5/8"-11, GB

12 foot primary wing double fold

4шт.

21

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened, 12 foot primary wing double fold

2шт.
