Запчасти Case IH 5850 (09-66) - WHEELS AND HUBS, CASTER WHEEL (09) - CHASSIS

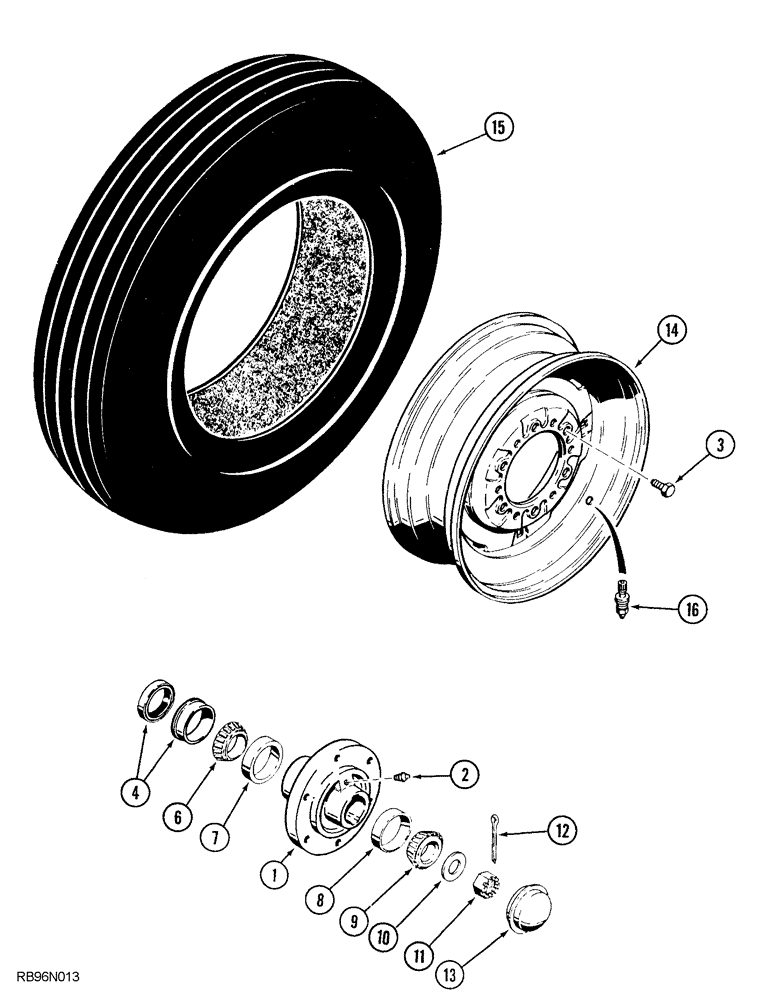

Схема запчастей Case IH 5850 - (09-66) - WHEELS AND HUBS, CASTER WHEEL (09) - CHASSIS
6
15
11
16
8
12
4
14
13
1
3
2
10
9
7

Артикул

Название

Примечание

Количество

1

606468R21

HUB

ASSEMBLY wheel, 6 bolt, Includes: Ref. 7 and 8

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

hex conical, 1/2" NF x 1-5/32"

1шт.

4

594702R91

SEAL

oil, also order 594703R1 wear ring

1шт.

Part of Wheel Bearing Repair Kit P/N 123096A2

1шт.

594703R1

SLEEVE

RING wear, 1/2" wide, also order 594702R91 seal

1шт.

Part of Wheel Bearing Repair Kit P/N 123096A2

1шт.

6

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

roller, tapered, 1-5/8" ID

1шт.

Part of Wheel Bearing Repair Kit P/N 123096A2

1шт.

7

663558R1

BEARING CUP

roller, tapered, 2-57/64" OD

1шт.

Part of Wheel Bearing Repair Kit P/N 123096A2

1шт.

Part of Wheel Hub Assembly P/N 606468R21

1шт.

8

651817R1

BEARING CUP

roller, tapered, 2-21/64" OD

1шт.

Part of Wheel Bearing Repair Kit P/N 123096A2

1шт.

Part of Wheel Hub Assembly P/N 606468R21

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

roller, tapered, 1-1/4" ID

1шт.

Part of Wheel Bearing Repair Kit P/N 123096A2

1шт.

10

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

flat, 29/32" x 1-3/4" x 7/64"

1шт.

11

70120D

SLOTTED NUT,7/8"-14

hex, special, 7/8" NC

1шт.

12

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

13

224066C1

HUB CAP

wheel

1шт.

14

A57879

RIM

15" x 8"

1шт.

15

REF

INSTRUCTION

TIRE, 9.5L - 15, 8 ply rating, purchase locally

1шт.

15

REF

INSTRUCTION

TIRE, 11L - 15, 12 ply rating, purchase locally

1шт.

16

810769C1

VALVE

inflation

1шт.

123096A2

WHEEL BEARING KIT

repair, Includes: Ref. 4 P/N 594702R91, P/N 594703R1, and Ref. 6, 7, 8 and 9

1шт.

Выбрано товаров: 26
