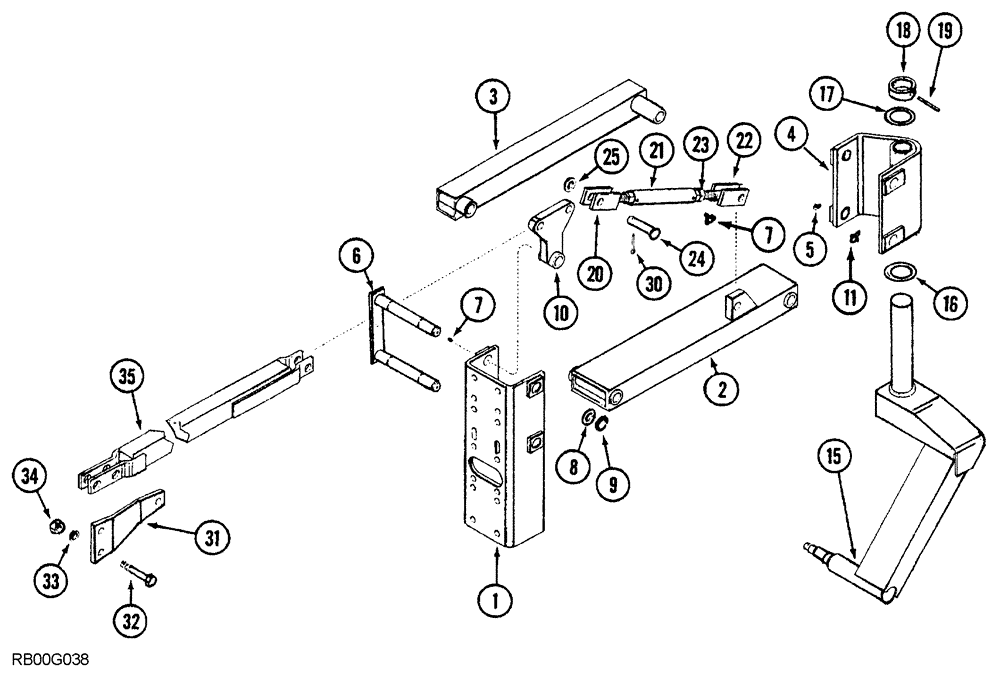

Запчасти Case IH 5850 (09-64) - CASTER WHEEL, USED WITH FLOATING HITCH (09) - CHASSIS

1

226538A1

BRACKET

mounting, caster wheel

1шт.

2

138989A2

TUBE,730 mm Length

LINK lower, L.H., shown

1шт.

2

252924A1

TUBE,730 mm Length

LINK lower, R.H.

1шт.

3

1969307C1

TUBE ASSY.

LINK upper

1шт.

4

1969304C2

CHANNEL

pivot, front

1шт.

5

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper

1шт.

6

259392A1

PIN ASSY.

link

2шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

8шт.

8

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

flat, 1-9/32" x 1-3/4" x 1/16"

4шт.

9

100-16125

SNAP RING,#125, Ext

4шт.

10

139629A1

PIVOT

push rod

1шт.

11

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

grease, special taper, 45°, 1/4"-28 x 13/16"

1шт.

15

1969330C2

CENTER AXLE

caster

1шт.

16

61625C1

WASHER

flat, 2-17/32" x 3-1/4" x 7/64"

1шт.

17

495-81231

WASHER,2 17/32" x 3 1/4" x .060"

flat, 2-17/32" x 3-1/4" x 1/16"

1шт.

18

251114A1

BUSHING

COLLAR locking

1шт.

19

438-33256

PIN,1/2" x 3 1/2", Coiled

1/2" x 3 1/2", Coiled

1шт.

20

1344919C3

YOKE

UNIVERSAL JOINT YOKE turnbuckle, L.H.thread

1шт.

21

480249R2

TURNBUCKLE

landing yoke

1шт.

22

1344920C3

YOKE

UNIVERSAL JOINT YOKE turnbuckle, R.H.thread

1шт.

23

425-1016

NUT,1"-8, G5

Hex

1шт.

24

439-51644

HEADED PIN,1" x 2 3/4", G5

headed, 1" x 2-3/4"

2шт.

25

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

flat, 1-9/32" x 1-3/4" x 1/16"

4шт.

30

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

31

139000A2

BAR

pusher, wing caster wheel only

1шт.

32

426-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

BOLT hex, 7/8" NC x 3-1/4", grade 8

2шт.

33

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

34

429-1014

NUT,7/8"-9, G8

hex, 7/8" NC, grade 8

2шт.

35

139647A2

TUBE,2081.7 mm Length

pusher

1шт.
