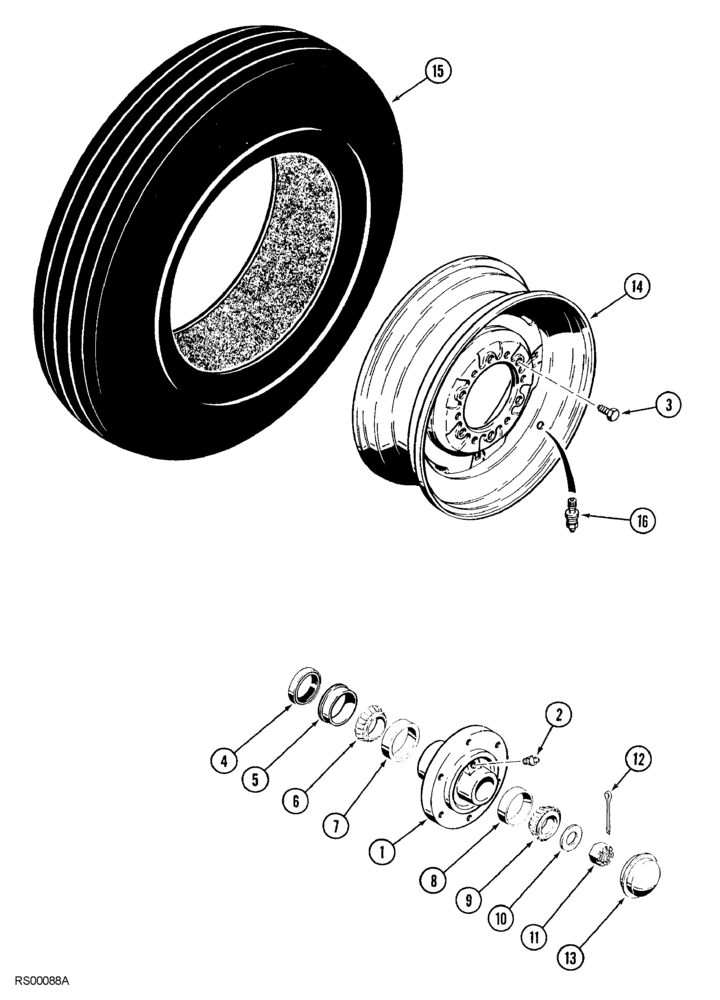

Запчасти Case IH 5850 (09-62) - WHEELS AND HUBS, GAUGE WHEEL (09) - CHASSIS

1

810087C2

HUB

wheel, six bolt mount

2шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

3

277538A1

BOLT,1/2" - 20 x 1.42"

wheel, 1/2" NF x 2"

12шт.

4

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

2шт.

5

472222R1

SLEEVE

oil seal

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

roller, tapered, 1-1/4" ID

2шт.

7

651817R1

BEARING CUP

roller, tapered, 2-21/64" OD

2шт.

8

651814R1

BEARING CUP

roller, tapered, 1-25/32" OD

2шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

roller, tapered, 3/4" ID

2шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

10

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32" x 1/4" x 1/8"

2шт.

11

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4" NF

2шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

2шт.

13

B13280

HUB CAP

wheel

2шт.

14

T53527

WHEEL

381 mm/15" x 127 mm/5"

2шт.

15

REF

INSTRUCTION

TIRE, 7.60 x 15, 6 ply rating, purchase locally

2шт.

16

810769C1

VALVE

inflation

2шт.
