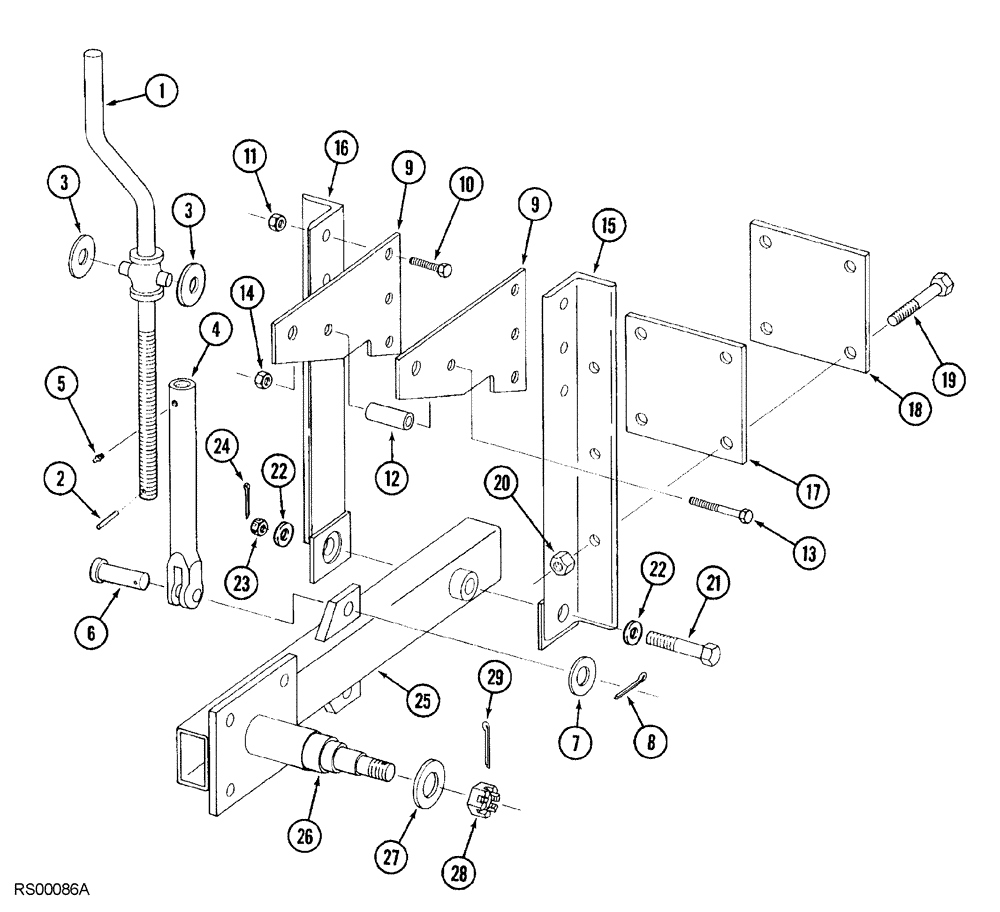

Запчасти Case IH 5850 (09-58) - GAUGE WHEEL, CRANK ADJUSTABLE (09) - CHASSIS

179412A2

ATTACHMENT guage wheel, crank adjustable

1шт.

1

599815R1

CRANK

adjusting, gauge wheel

2шт.

2

438-31012

PIN,5/32" x 3/4", Coiled

5/32" x 3/4", Coiled

2шт.

3

495-81041

WASHER,25/32" x 1 1/2" x .060"

flat, 25/32" x 1-1/2" x 1/16"

4шт.

4

458520R1

THREADED TIE-ROD

YOKE adjusting crank

2шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

6

439-51236

HEADED PIN,19.05mm OD x 57.15mm L

headed, 3/4" x 2-1/4"

2шт.

7

495-81042

WASHER,25/32" x 1 1/2" x .120"

flat, 25/32" x 1-1/2" x 7/64"

2шт.

8

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

9

599814R2

BAR

PLATE guide, adjusting crank

4шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

12шт.

11

425-108

NUT,1/2" - 13, Gr 5

12шт.

12

517920R1

SPACER,1/2" Pipe x 2"

pipe, 1/2" ID x 2"

2шт.

13

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

hex, 1/2" NC x 3-1/4"

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

2шт.

15

599807R1

ANGLE

BRACKET mounting, gauge wheel, L.H.

2шт.

16

599808R1

ANGLE

BRACKET mounting, gauge wheel, R.H.

2шт.

17

599812R1

BAR

PLATE bracket mounting, inner

2шт.

18

599813R1

BAR

PLATE bracket mounting, outer

2шт.

19

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4" NC x 6"

8шт.

20

425-1012

NUT,3/4"-10, G5

8шт.

21

113-2729

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

22

495-81045

WASHER,25/32" x 1 3/4" x .179"

flat, 25/32" x 1-3/4" x 11/64"

4шт.

23

425-1212

SLOTTED NUT,3/4"-10, G5

hex, slotted, 3/4" NC

2шт.

24

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

2шт.

25

599819R2

AXLE HOUSING

ASSEMBLY gauge wheel

2шт.

26

599823R11

SPINDLE

ASSEMBLY gauge wheel axle

1шт.

27

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32" x 1/4" x 1/8"

1шт.

28

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4" NF

1шт.

29

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.
