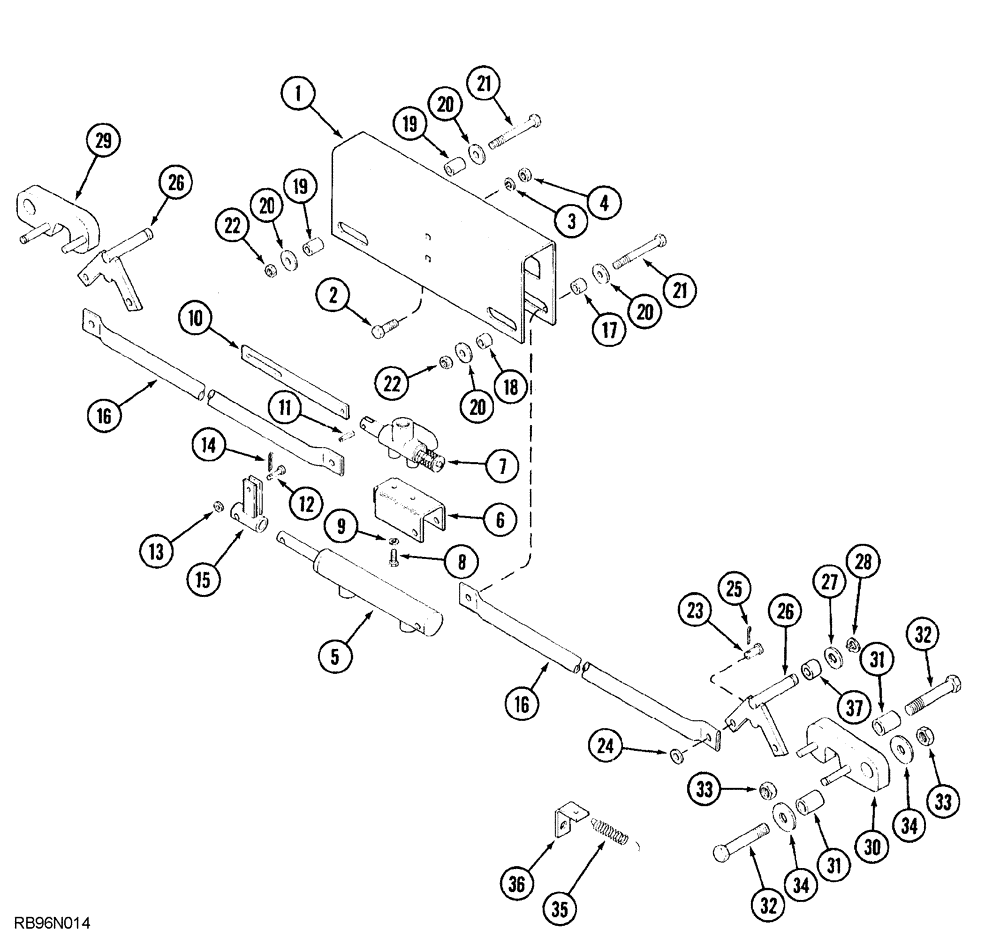

Запчасти Case IH 5850 (09-54) - AUTOMATIC WING TRANSPORT LOCK, VERTICAL FOLD AND DOUBLE FOLD, 29 FOOT THROUGH 53 FOOT WIDE (09) - CHASSIS

1

177082A1

LARGE PLATE

PLATE, LARGE CHANNEL cylinder mounting

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

2шт.

5

1286364C91

CYLINDER ASSY.

38 mm/1-1/2" ID x 102 mm/4" stroke, see Figure 08-38

1шт.

6

187286A1

LARGE PLATE

PLATE, LARGE SUPPORT valve

1шт.

7

187904A1

VALVE

transport lockout

1шт.

8

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

9

492-11031

LOCK WASHER,5/16"

2шт.

10

187285A1

BAR

connecting

1шт.

11

438-11616

LOCK PIN,1/4" x 1", Slotted

1/4" x 1", Slotted

1шт.

12

439-1416

HEADED PIN,1/4" x 1"

headed, , grade 2 1/4" x 1"

1шт.

13

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

14

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

15

187303A1

BAR

connecting

1шт.

16

177093A1

TUBE,1.05" OD

connecting

2шт.

17

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

pipe, 1/2" ID x 1/2"

1шт.

18

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

pipe, 1/2" ID x 1/2"

1шт.

19

M22613

SPACER,1/2" X-Strng Pipe x 1"

Order 517899R1 and cut to length

2шт.

20

495-21056

WASHER,1/2"

flat, 9/16" x 1-3/8" x 7/64"

4шт.

21

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2" NC x 4-1/2"

2шт.

22

231-4218

LOCK NUT,1/2"-13, GB

hex, self-locking, 1/2" NC

2шт.

23

439-1816

HEADED PIN,1/2" x 1"

headed, , grade 2 1/2" x 1"

2шт.

24

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

25

432-1216

COTTER PIN,3/16" x 1"

2шт.

26

177094A1

LATCH ASSY.

trip release

2шт.

27

495-11081

WASHER,3/4", SAE

2шт.

28

100-1175

SNAP RING,#75, Ext

2шт.

29

177288A2

LATCH ASSY.

wing lock, L.H.

1шт.

30

177290A2

LATCH

wing lock, R.H.

1шт.

31

109070R1

SPACER,3/4" Pipe x 1 1/2"

pipe, 3/4" ID x 1-1/2"

4шт.

32

426-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

BOLT hex, 3/4" NC x 4", grade 8

4шт.

33

231-42112

NUT,3/4"-10, GB

hex, self-locking, 3/4" NC

4шт.

34

495-11106

WASHER,1", SAE

(1-1/16 x 2 x 1/8")

6шт.

35

842482C1

SPRING

extension

2шт.

36

182432A1

BRACKET

spring, 6 foot and 9 foot primary wing only

2шт.

37

PO11463

SPACER,3/4" Pipe x 11/16"

3/4" x 21/32"

2шт.
