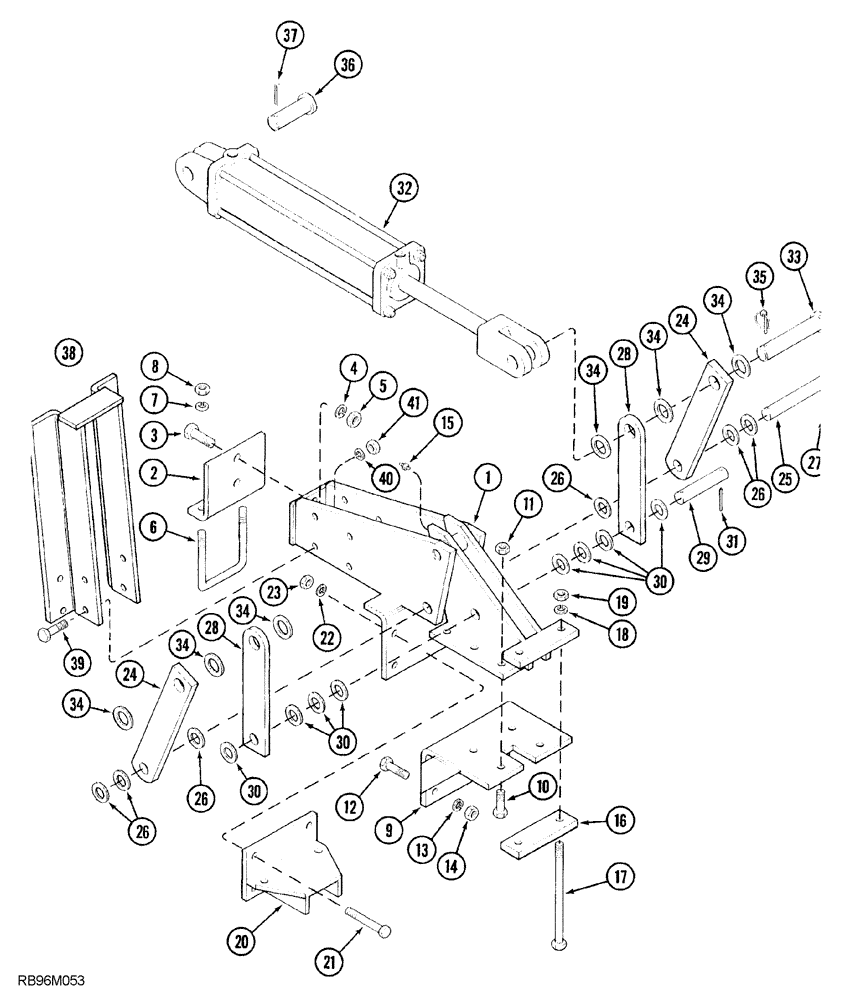

Запчасти Case IH 5850 (09-48) - REAR SECONDARY WING LIFT HINGE AND CYLINDER MOUNTING, DOUBLE FOLD, RIGID, 43 FOOT AND 45 FOOT WIDE (09) - CHASSIS

1

141060A1

HINGE

secondary wing lift, rear

2шт.

2

140991A2

BAR

ANGLE hinge support

2шт.

3

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

4

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

5

429-1012

NUT,3/4"-10, G8

hex, NC

4шт.

6

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC

2шт.

7

492-11062

BEARING WASHER,5/8"

4шт.

8

425-1010

NUT,5/8"-11, G5

4шт.

9

187355A1

LARGE PLATE

PLATE, LARGE SUPPORT hinge mounting

2шт.

10

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8" NC x 1-3/4"

8шт.

11

231-42110

LOCK NUT,Hex, 5/8"-11, GB

8шт.

12

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

13

492-11062

BEARING WASHER,5/8"

8шт.

14

425-1010

NUT,5/8"-11, G5

8шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

16

142354A1

BAR

mounting

2шт.

17

413-10160

BOLT,Hex, 5/8" - 11 x 10", Gr 5

BOLT hex, 5/8" NC x 10"

4шт.

18

492-11062

BEARING WASHER,5/8"

4шт.

19

425-1010

NUT,5/8"-11, G5

4шт.

20

142370A1

STOP

rigid wing

2шт.

21

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

BOLT hex, 5/8" NC x 3-3/4"

8шт.

22

492-11062

BEARING WASHER,5/8"

8шт.

23

425-1010

NUT,5/8"-11, G5

8шт.

24

189248A1

BAR

rigid

4шт.

25

811962C1

PIN

pivot

2шт.

26

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

12шт.

27

438-31636

PIN,1/4" x 2 1/4", Coiled

1/4" x 2 1/4", Coiled

4шт.

28

186864A1

BAR

LINK outer hinge

4шт.

29

854527C1

PIN

pivot

2шт.

30

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

16шт.

31

438-31636

PIN,1/4" x 2 1/4", Coiled

1/4" x 2 1/4", Coiled

4шт.

32

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY, 89 mm/3-1/2" ID x 406 mm/16" stroke, see Figure 08-30

2шт.

32

1272149C92R

REMAN-HYD CYLINDER

5850 CASE IH CHISEL PLOW, ASSEMBLY

2шт.

32

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

33

427-20625

CLEVIS PIN,31.75mm OD x 158.75mm L

hardened, 1-1/4" x 6-1/4"

2шт.

34

495-81203

WASHER,1 9/32" x 2" x .120"

flat, 1-9/32" x 2" x 1/8"

12шт.

35

A30338

PIN

lock

2шт.

36

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

hardened, 1-1/4" x 3-1/4"

2шт.

37

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

38

183133A2

STAND

SUPPORT wing stop

2шт.

39

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

40

492-11062

BEARING WASHER,5/8"

8шт.

41

425-1010

NUT,5/8"-11, G5

8шт.
