Запчасти Case IH 5850 (04-04) - WIRING HARNESS AND LAMP MOUNTING, FLAT FOLD (04) - ELECTRICAL SYSTEMS

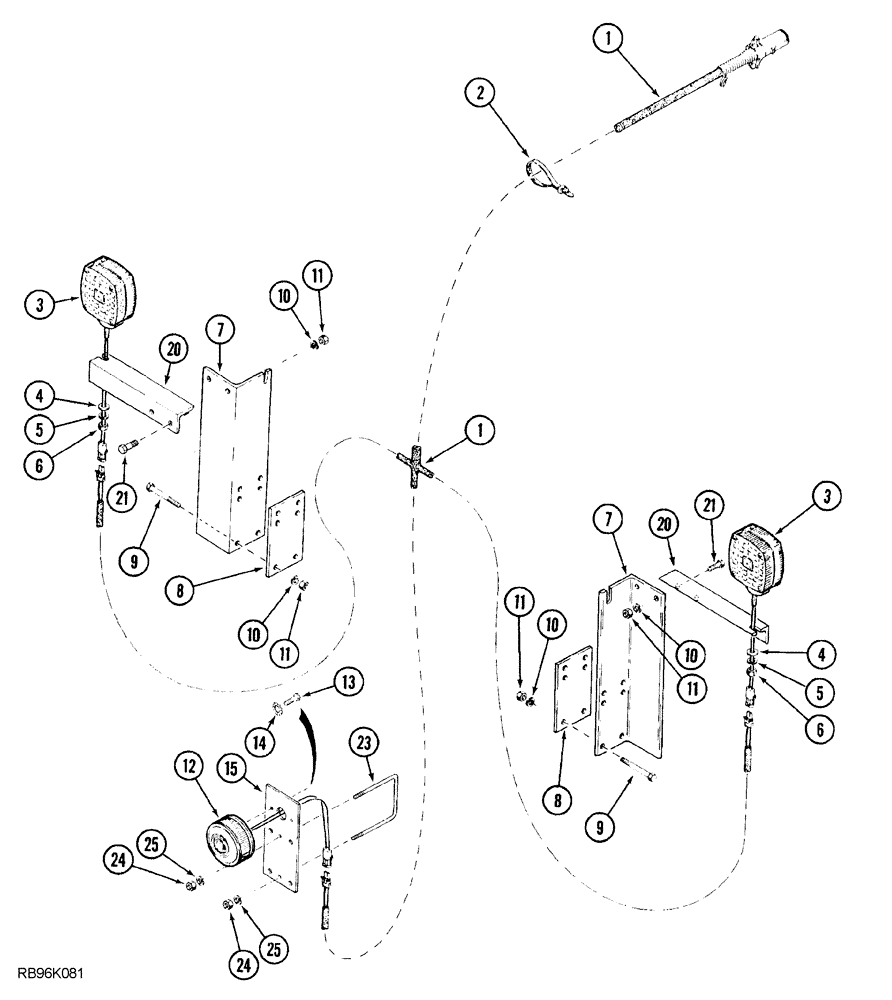

Схема запчастей Case IH 5850 - (04-04) - WIRING HARNESS AND LAMP MOUNTING, FLAT FOLD (04) - ELECTRICAL SYSTEMS
4
6
21
20
1
6
21
3
3
8
10
12
9
23
10
11
5
25
24
10
11
11
5
10
13
11
2
14
20
7
4
8
15
25
7
1
24
9

Артикул

Название

Примечание

Количество

1

1969327C1

HARNESS

wiring

1шт.

2

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

14шт.

3

91913C91

LIGHT

LAMP turn signal, see Figure 04-08

2шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

7

1969260C2

ANGLE

BRACKET mounting, turn signal lamp

2шт.

8

1969263C1

LARGE PLATE

PLATE, LARGE mounting

2шт.

9

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

8шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

11

425-108

NUT,1/2" - 13, Gr 5

12шт.

12

91986C91

LIGHT

LAMP ASSEMBLY tail, see Figure 04-10

1шт.

13

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

self-tapping, pan Phillips, No. 10 NC x 3/4"

2шт.

15

1969262C2

LARGE PLATE

PLATE, LARGE mounting, tail lamp

1шт.

20

189184A1

ANGLE

BRACKET mounting, turn signal lamp, 240 mm/9-7/16" long

2шт.

20

1969261C1

ANGLE

BRACKET mounting, turn signal lamp, 650 mm/25-1/2" long

2шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

23

810099C1

BOLT,U, 1/4" - 20 x 4.75"

U, mounting bar

1шт.

24

425-104

NUT,1/4"-20, Cl 5

2шт.

25

492-11025

LOCK WASHER,1/4"

2шт.

14

493-81000

LOCK WASHER,Ext-Int Tooth, #10

(3/16")

2шт.

Выбрано товаров: 21
