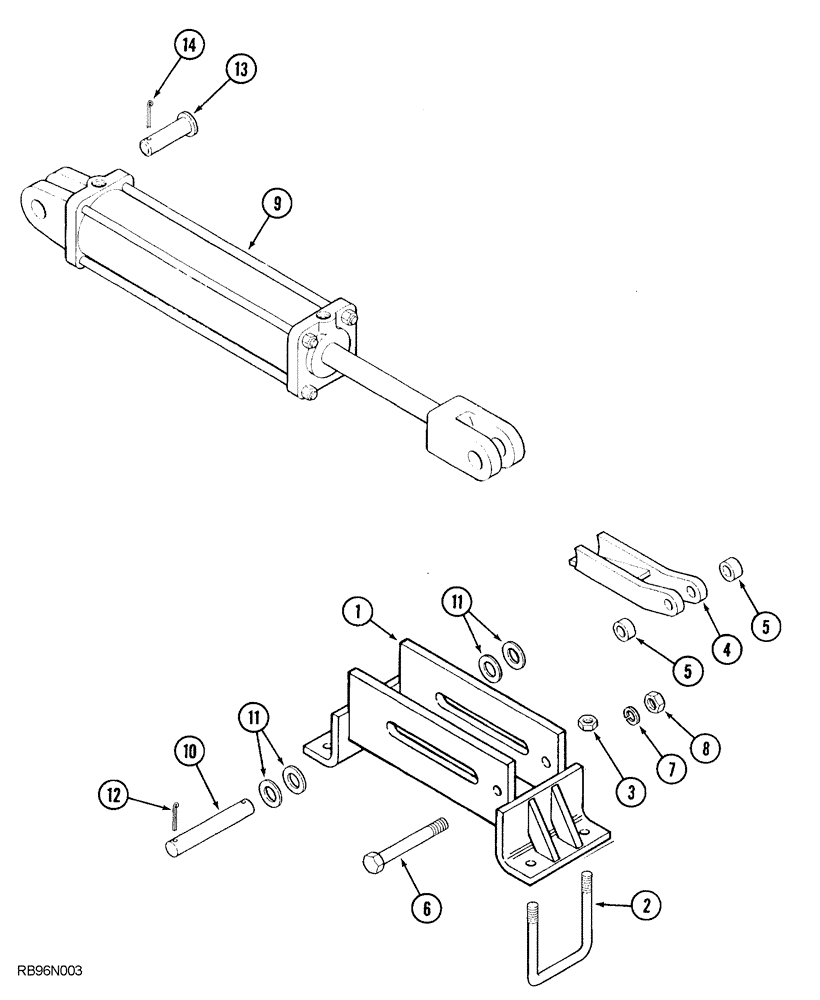

Запчасти Case IH 5850 (09-44) - PRIMARY WING LIFT CYLINDER MOUNTING, DOUBLE FOLD, 43 FOOT THROUGH 53 FOOT WIDE (09) - CHASSIS

1

141090A2

SUPPORT

wing lift, 43 foot and 45 foot wide

2шт.

1

141090A2

SUPPORT

wing lift, 49 foot through 53 foot wide

4шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC

1шт.

3

231-42110

LOCK NUT,Hex, 5/8"-11, GB

1шт.

4

187351A1

LEVER

wing unfold, 43 foot and 45 foot wide

2шт.

4

187351A1

LEVER

wing unfold, 49 foot through 53 foot wide

4шт.

5

PO11463

SPACER,3/4" Pipe x 11/16"

3/4" x 21/32", if used

1шт.

6

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4" NC x 6"

1шт.

7

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

8

425-1012

NUT,3/4"-10, G5

1шт.

9

224795C92

CYLINDER

ASSEMBLY, 102 mm/4" ID x 864 mm/34" stroke, 43 foot and 45 foot wide, see Figure 08-36

2шт.

9

224795C92

CYLINDER

ASSEMBLY, 102 mm/4" ID x 864 mm/34" stroke. 49 foot through 53 foot wide, see Figure 08-36

4шт.

10

813192C1

PIN

pivot

1шт.

11

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

1шт.

12

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

13

810751C1

PIN

1" x 3-1/2"

1шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.
