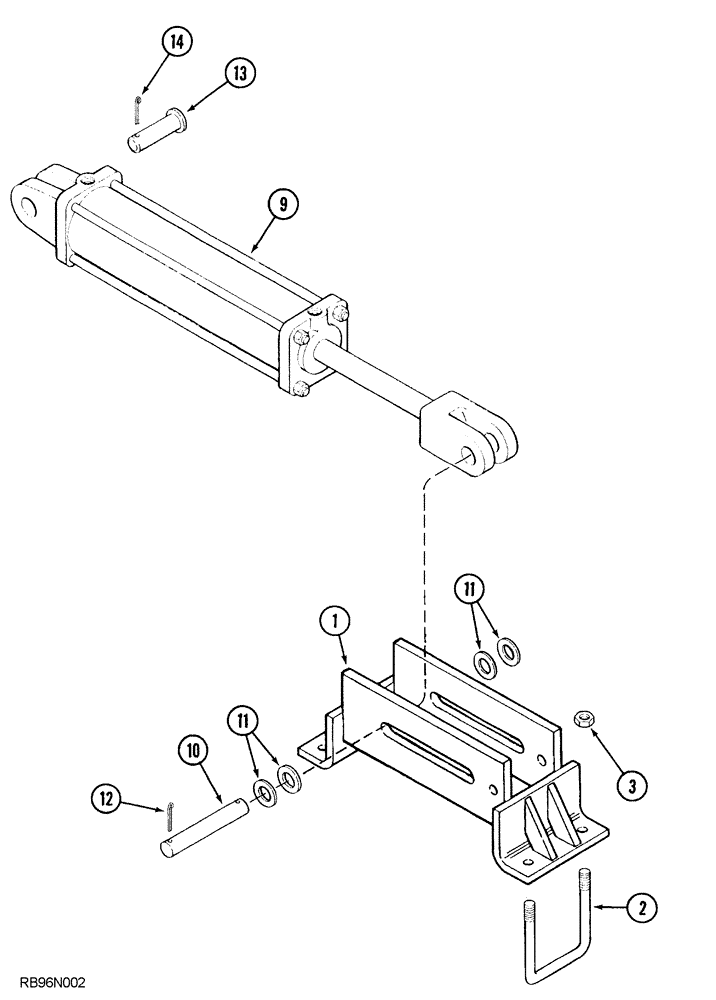

Запчасти Case IH 5850 (09-42) - WING LIFT CYLINDER MOUNTING, VERTICAL FOLD, 37 FOOT THROUGH 41 FOOT WIDE (09) - CHASSIS

1

141090A2

SUPPORT

wing lift

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC

4шт.

3

231-42110

LOCK NUT,Hex, 5/8"-11, GB

8шт.

9

224795C92

CYLINDER

ASSEMBLY, 102 mm/4" ID x 864 mm/34" stroke, see Figure 08-36

2шт.

10

813192C1

PIN

pivot

2шт.

11

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

8шт.

12

432-1224

COTTER PIN,3/16" x 1-1/2"

4шт.

13

810751C1

PIN

1" x 3-1/2"

2шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.
