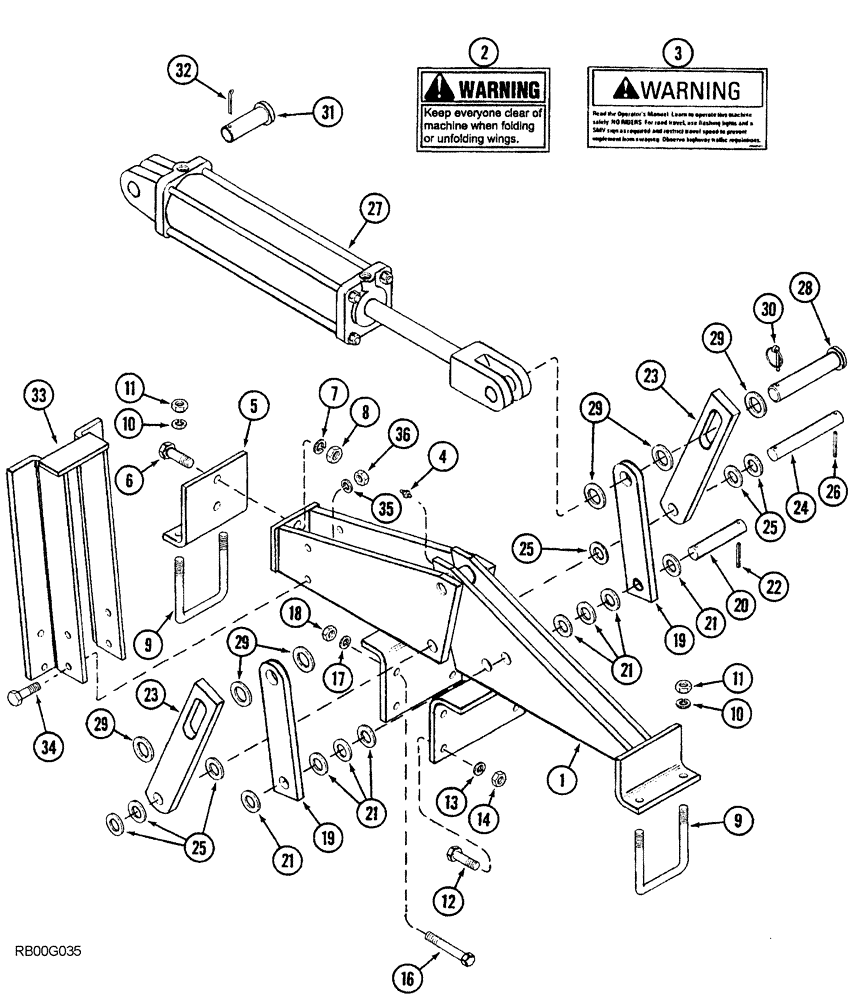

Запчасти Case IH 5850 (09-38) - REAR WING LIFT HINGE AND CYLINDER MOUNTING, FLAT FOLD, FLOATING, 25 FOOT AND 27 FOOT WIDE (09) - CHASSIS

1

189591A1

HINGE

ASSEMBLY wing lift, rear

2шт.

2

59051C3

WARNING DECAL

warning, keep everyone clear of machine when folding or unfolding wings

1шт.

3

220321A1

WARNING DECAL

warning, read the operator's manual

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

5

140991A2

BAR

ANGLE hinge support

2шт.

6

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

7

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

8

429-1012

NUT,3/4"-10, G8

hex, NC

8шт.

9

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC

4шт.

10

492-11062

BEARING WASHER,5/8"

8шт.

11

425-1010

NUT,5/8"-11, G5

8шт.

12

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

13

492-11062

BEARING WASHER,5/8"

8шт.

14

425-1010

NUT,5/8"-11, G5

8шт.

16

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

BOLT hex, 5/8" NC x 3-3/4"

8шт.

17

492-11062

BEARING WASHER,5/8"

8шт.

18

425-1010

NUT,5/8"-11, G5

8шт.

19

186864A1

BAR

LINK outer hinge

4шт.

20

854527C1

PIN

pivot

2шт.

21

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

16шт.

22

438-31636

PIN,1/4" x 2 1/4", Coiled

1/4" x 2 1/4", Coiled

4шт.

23

186863A1

BAR

floating

4шт.

24

811962C1

PIN

pivot

2шт.

25

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

12шт.

26

438-31636

PIN,1/4" x 2 1/4", Coiled

1/4" x 2 1/4", Coiled

4шт.

27

1272150C91

CYLINDER

ASSEMBLY, 102 mm/4" ID x 406 mm/16" stroke, see Figure 08-32

2шт.

28

427-20625

CLEVIS PIN,31.75mm OD x 158.75mm L

hardened, 1-1/4" x 6-1/4"

2шт.

29

495-81203

WASHER,1 9/32" x 2" x .120"

flat, 1-9/32" x 2" x 1/8"

20шт.

30

A30338

PIN

lock

2шт.

31

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

hardened, 1-1/4" x 3-1/4"

2шт.

32

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

33

183133A2

STAND

SUPPORT wing stop

2шт.

34

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

35

492-11062

BEARING WASHER,5/8"

8шт.

36

425-1010

NUT,5/8"-11, G5

8шт.
