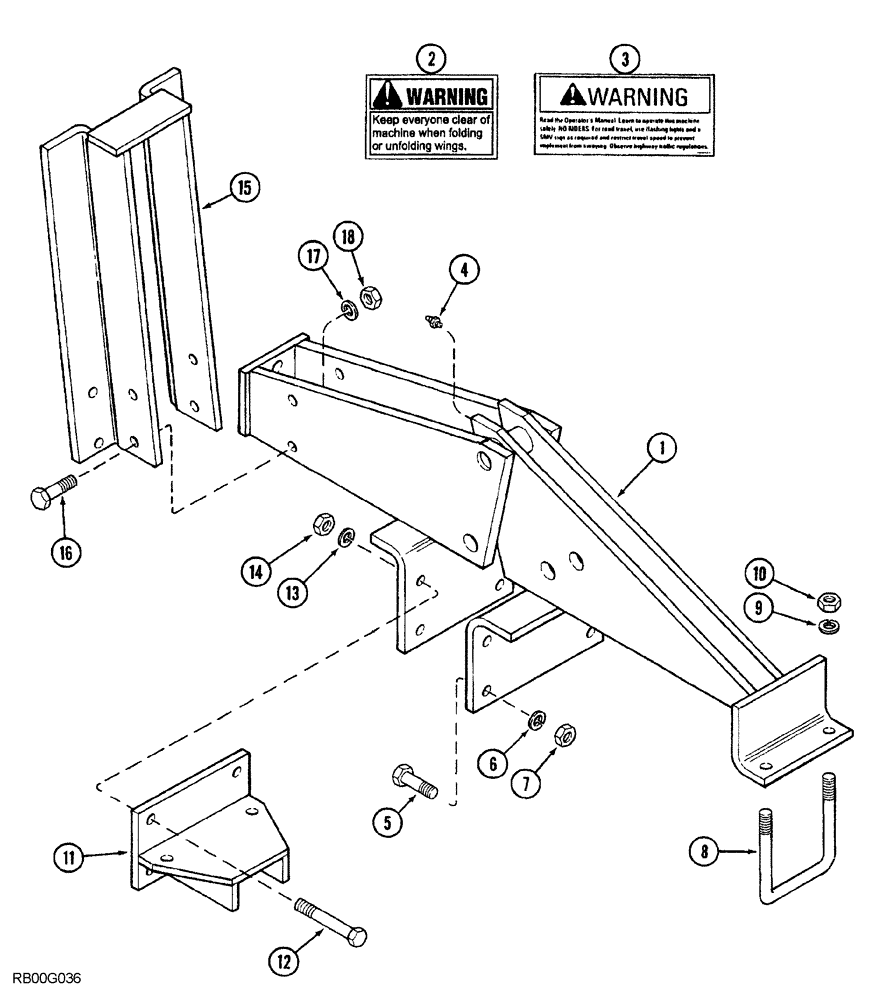

Запчасти Case IH 5850 (09-32) - FRONT WING LIFT HINGE, FLAT FOLD, RIGID, 19 FOOT THROUGH 23 FOOT WIDE (09) - CHASSIS

1

189591A1

HINGE

ASSEMBLY wing lift, front

2шт.

2

59051C3

WARNING DECAL

warning, keep everyone clear of machine when folding or unfolding wings

1шт.

3

220321A1

WARNING DECAL

warning, read the operator's manual

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

5

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

6

492-11062

BEARING WASHER,5/8"

8шт.

7

425-1010

NUT,5/8"-11, G5

8шт.

8

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC

2шт.

9

492-11062

BEARING WASHER,5/8"

4шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

11

142370A1

STOP

rigid wing

2шт.

12

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

BOLT hex, 5/8" NC x 3-3/4"

8шт.

13

492-11062

BEARING WASHER,5/8"

8шт.

14

425-1010

NUT,5/8"-11, G5

8шт.

15

183133A2

STAND

SUPPORT wing stop, 23 foot wide only

2шт.

16

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

17

492-11062

BEARING WASHER,5/8"

8шт.

18

425-1010

NUT,5/8"-11, G5

8шт.
