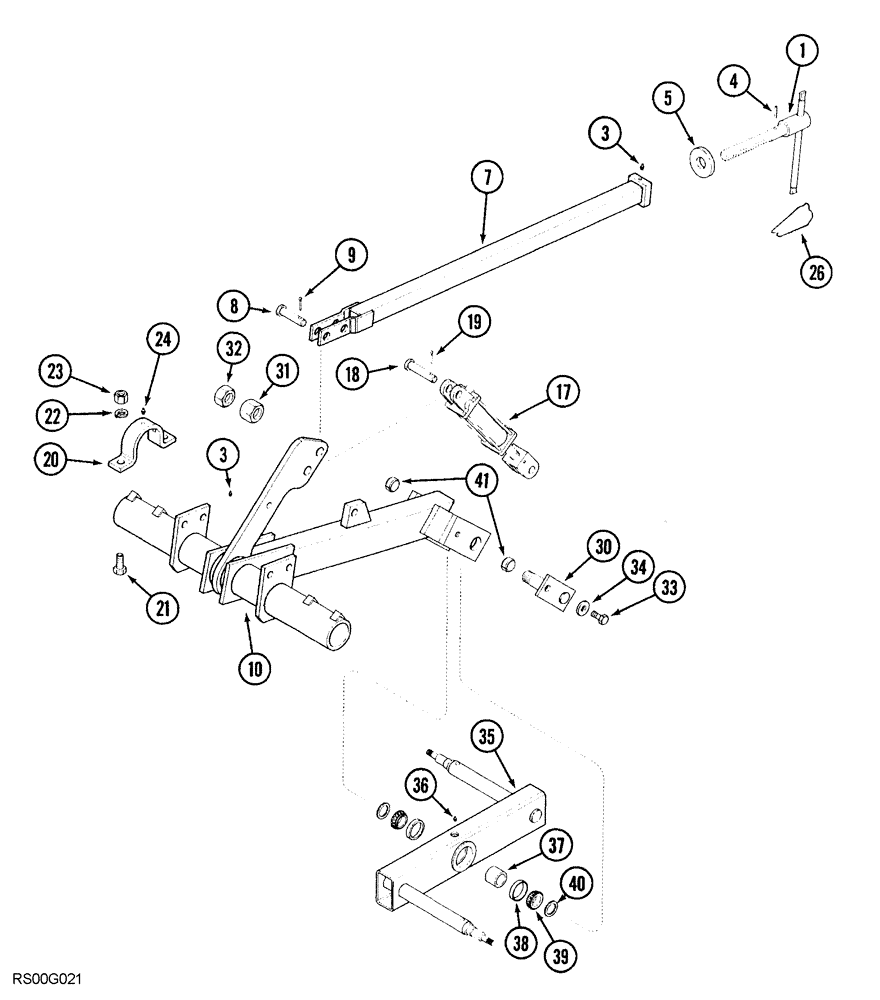

Запчасти Case IH 5850 (09-26) - 9 FOOT WING FRAME AXLES AND DEPTH CONTROL, PRIMARY WING VERTICAL FOLD 31 FOOT THROUGH 35 FOOT WIDE (09) - CHASSIS

1

1284398C3

STUD

truss rod

2шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

4

438-32432

PIN,9.53mm OD x 50.8mm L

3/8" x 2", Coiled

2шт.

5

495-81203

WASHER,1 9/32" x 2" x .120"

flat, 1-9/32" x 2" x 1/8"

4шт.

7

141097A1

ROD ASSY.

TUBE truss

2шт.

8

439-11639

HEADED PIN,1" x 2 7/16"

headed, 1" x 2-7/16", grade 2

2шт.

9

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

10

138998A2

HYD ROCKSHAFT

depth control, Includes: Ref. 41

2шт.

17

1282328C92

CYLINDER ASSY.

95 mm/3-3/4" ID x 203 mm/8" stroke, see Figure 08-26

2шт.

17

87423766R

REMAN-HYD CYLINDER

95 mm/3-3/4" ID x 203 mm/8" stroke, see Figure 08-26

2шт.

17

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

18

810751C1

PIN

1" x 3-1/2"

4шт.

19

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

20

97786C2

STRAP

CLAMP rockshaft

4шт.

21

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.

22

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

23

429-1012

NUT,3/4"-10, G8

hex, NC

8шт.

24

219-86

LUBE NIPPLE,1/8" NPTF

Straight, self tapping

4шт.

26

1973010C1

RETAINER

spring

2шт.

30

103069A2

PIN

pivot

2шт.

31

231-41124

LOCK NUT,1 1/2"-6, GB

hex, self-locking, 1-1/2" NC

2шт.

32

131-1419

NUT,1 1/2"-6, Thin

hex, thin, 1-1/2" NC

2шт.

33

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

BOLT hex, 3/4" NC x 1"

2шт.

34

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

35

186217A1

TUBE ASSY.,584 mm Length

AXLE wing frame

2шт.

36

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

37

107921A2

TUBE

SPACER, 1-11/16" long

2шт.

38

453012R1

BEARING CUP

roller, tapered

4шт.

39

8050528

ROLLER BEARING

roller, tapered

4шт.

40

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

spacer

4шт.

41

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

1-1/2" ID x 1-3/4" OD x 3/4"

4шт.

Part of Depth Control Rockshaft P/N 138998A2

1шт.
