(04-02) - WIRING HARNESS AND LAMP MOUNTING, MOUNTED

Запчасти Case IH 5850 (04-02) - WIRING HARNESS AND LAMP MOUNTING, MOUNTED (04) - ELECTRICAL SYSTEMS

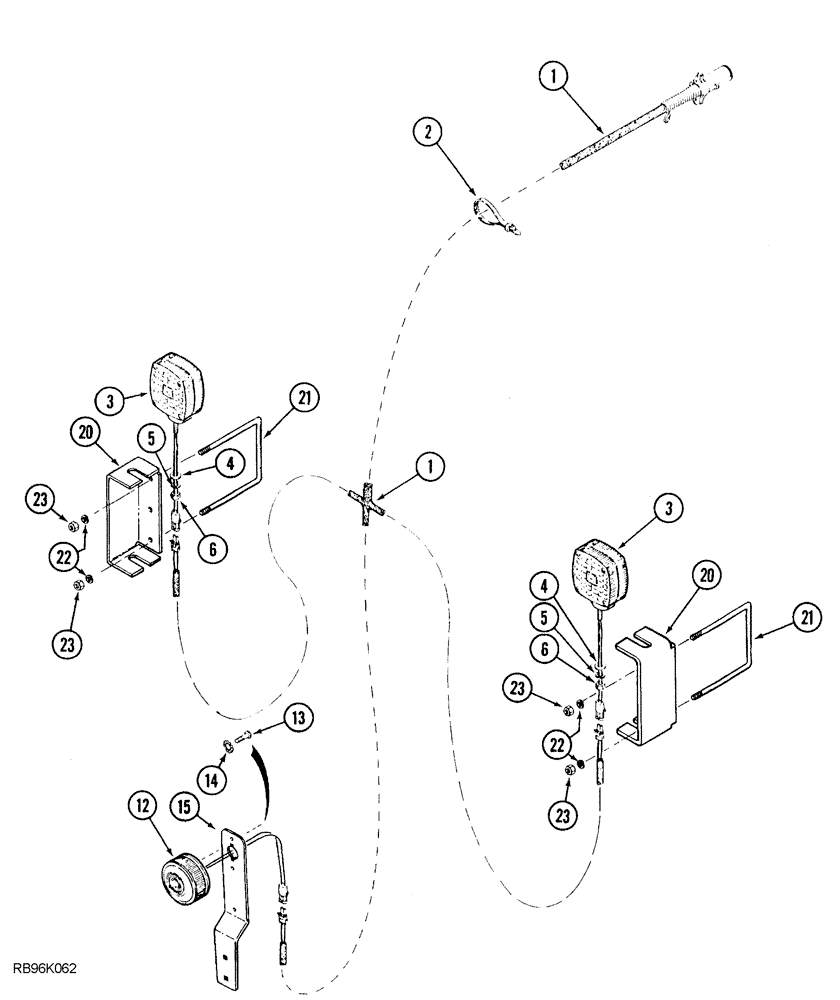

Схема запчастей Case IH 5850 - (04-02) - WIRING HARNESS AND LAMP MOUNTING, MOUNTED (04) - ELECTRICAL SYSTEMS
20
12
23
13
5
23
6
15
1
23
20
3
22
6
4
22
5
23
21
21
1
4
3
14
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

92061C1

HARNESS

lighting

1шт.

2

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

16шт.

3

91913C91

LIGHT

LAMP turn signal, see Figure 04-08

2шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

12

91986C91

LIGHT

LAMP ASSEMBLY tail, see Figure 04-10

1шт.

13

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

self-tapping, pan Phillips, No. 10 NC x 3/4"

2шт.

15

1978653C1

SUPPORT

BRACKET mounting, lamp

1шт.

20

1344785C1

BRACKET

mounting, turn signal lamp

2шт.

21

810099C1

BOLT,U, 1/4" - 20 x 4.75"

U, mounting bar

2шт.

22

492-11025

LOCK WASHER,1/4"

4шт.

23

425-104

NUT,1/4"-20, Cl 5

4шт.

14

493-81000

LOCK WASHER,Ext-Int Tooth, #10

(3/16")

2шт.
