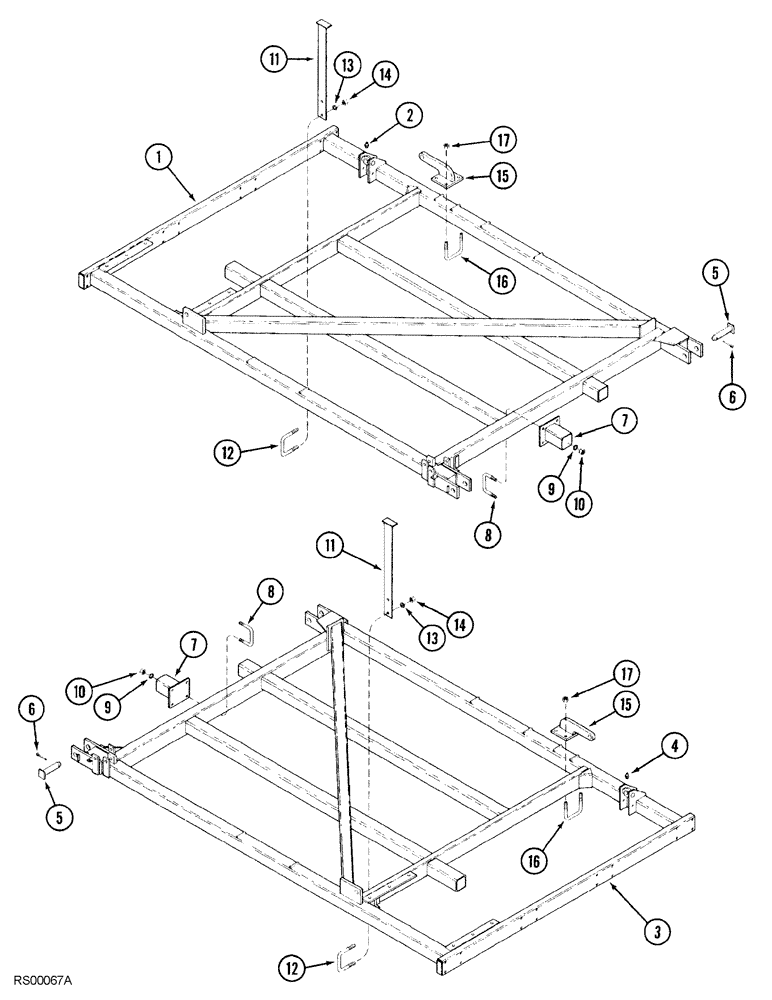

Запчасти Case IH 5850 (09-20) - 12 FOOT WING FRAME, PRIMARY WING VERT FLD 37 THRU 41 WIDE, PRIMARY WING DBLE FLD 43 THRU 53 WIDE (09) - CHASSIS

1

136252A3

FUNNEL

FRAME wing, L.H., 12 foot

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

136253A3

FUNNEL

FRAME wing, R.H., 12 foot

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

5

811965C2

PIN

primary wing frame to main frame

4шт.

6

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

4шт.

7

142321A1

EXTENSION

stub, clamp on

2шт.

8

817740C1

U-BOLT

U, 5/8" NC

4шт.

9

492-11062

BEARING WASHER,5/8"

8шт.

10

425-1010

NUT,5/8"-11, G5

8шт.

11

183056A2

SUPPORT

secondary wing, 49 through 53 foot wide only

2шт.

12

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC

2шт.

13

492-11062

BEARING WASHER,5/8"

4шт.

14

425-1010

NUT,5/8"-11, G5

4шт.

15

143008A1

ANCHOR

cylinder, 49 through 53 foot wide only

2шт.

16

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC

4шт.

17

231-42110

LOCK NUT,Hex, 5/8"-11, GB

8шт.
