(09-18) - 9 FOOT WING FRAME, PRIMARY WING VERTICAL FOLD, 31 THROUGH 35 WIDE

Запчасти Case IH 5850 (09-18) - 9 FOOT WING FRAME, PRIMARY WING VERTICAL FOLD, 31 THROUGH 35 WIDE (09) - CHASSIS

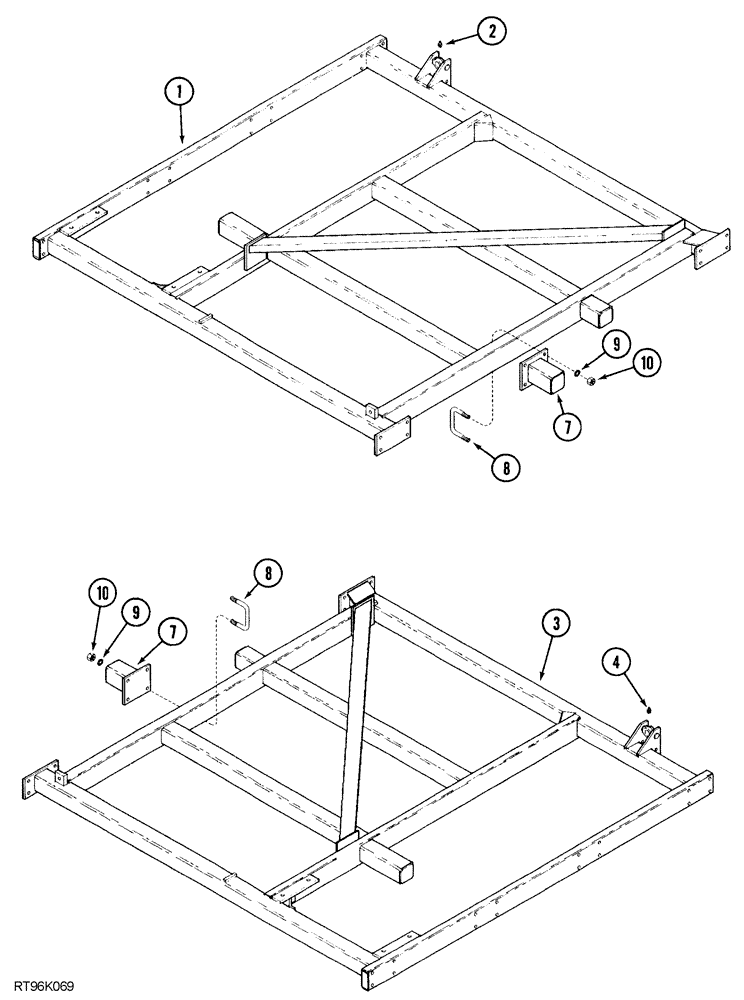

Схема запчастей Case IH 5850 - (09-18) - 9 FOOT WING FRAME, PRIMARY WING VERTICAL FOLD, 31 THROUGH 35 WIDE (09) - CHASSIS
7
7
10
8
2
8
10
1
9
4
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

231698A4

FUNNEL

FRAME wing, L.H., 9 foot

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

231699A4

FUNNEL

FRAME wing, R.H., 9 foot

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

7

142321A1

EXTENSION

stub, clamp on

2шт.

8

817740C1

U-BOLT

U, 5/8" NC

4шт.

9

492-11062

BEARING WASHER,5/8"

8шт.

10

425-1010

NUT,5/8"-11, G5

8шт.

Выбрано товаров: 8
