Запчасти Case IH 5850 (09-12) - WHEELS AND HUBS, MAIN FRAME (09) - CHASSIS

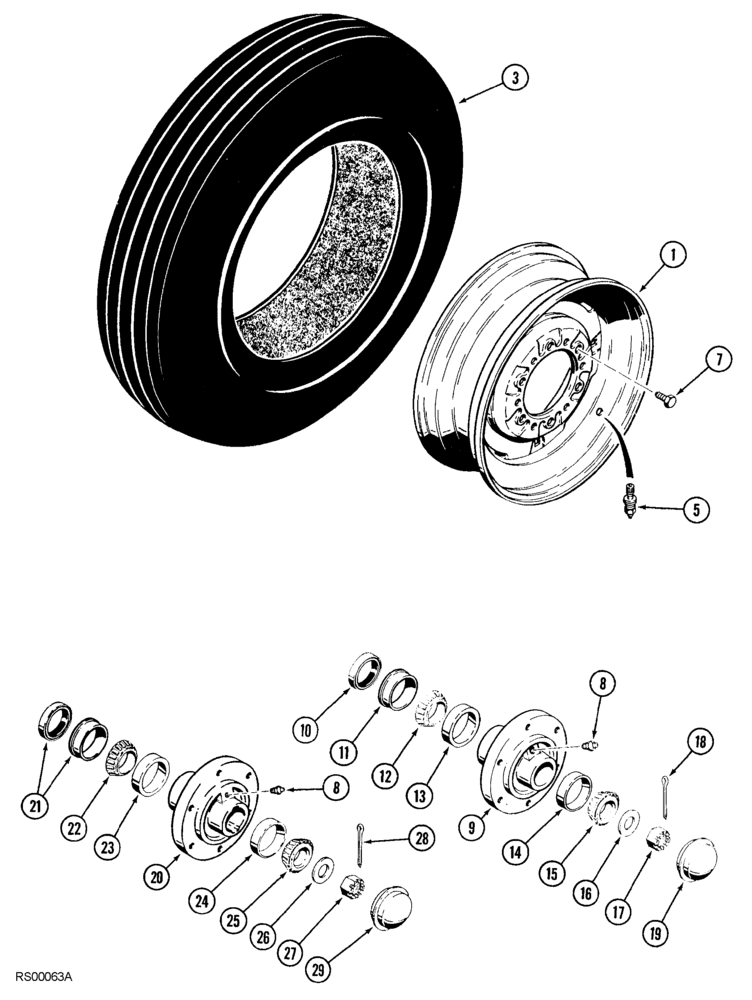

Схема запчастей Case IH 5850 - (09-12) - WHEELS AND HUBS, MAIN FRAME (09) - CHASSIS
11
12
24
15
16
27
10
5
8
22
18
1
19
25
26
14
3
7
23
13
20
28
17
8
21
9
29

Артикул

Название

Примечание

Количество

1

A57879

RIM

15" x 8", common parts

4шт.

3

REF

INSTRUCTION

TIRE, 9.5L - 15, 8 ply rating, 19 foot through 43 foot wide, purchase locally, common parts

4шт.

3

REF

INSTRUCTION

TIRE, 11L - 15, 12 ply rating, 43 foot through 53 foot wide, purchase locally, common parts

4шт.

5

810769C1

VALVE

inflation, common parts

4шт.

7

277538A1

BOLT,1/2" - 20 x 1.42"

wheel, 1/2" NF x 2", common parts

24шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Common parts

4шт.

9

810087C2

HUB

wheel, six bolt mount, flat fold

4шт.

10

472222R1

SLEEVE

oil seal, flat fold

4шт.

11

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil, flat fold

4шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

roller, tapered, 1-1/4" ID, flat fold

4шт.

13

651817R1

BEARING CUP

roller, tapered, 2-21/64" OD, flat fold

4шт.

14

651814R1

BEARING CUP

roller, tapered, 1-25/32" OD, flat fold

4шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

roller, tapered, 3/4" ID, flat fold

4шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

4шт.

16

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32" x 1/4" x 1/8 ", flat fold

4шт.

17

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4" NF, flat fold

4шт.

18

432-824

COTTER PIN,1/8" x 1 1/2"

Flat fold

4шт.

19

B13280

HUB CAP

wheel, flat fold

4шт.

20

606468R21

HUB

ASSEMBLY wheel, 6 bolt, Includes: Ref. 23 and 24, vertical and double fold

4шт.

21

594702R91

SEAL

oil, also order 594703R1 wear ring, vertical and double fold

4шт.

Part of Wheel Bearing Repair Kit P/N 123096A2

1шт.

594703R1

SLEEVE

RING wear, 1/2" wide, also order 594702R91 seal, vertical and double fold

4шт.

Part of Wheel Bearing Repair Kit P/N 123096A2

1шт.

22

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

roller, tapered, 1-5/8" ID, vertical and double fold

4шт.

Part of Wheel Bearing Repair Kit P/N 123096A2

1шт.

23

663558R1

BEARING CUP

roller, tapered, 2-57/64" OD, vertical and double fold

4шт.

Part of Wheel Bearing Repair Kit P/N 123096A2

1шт.

Part of Wheel Hub Assembly P/N 606468R21

1шт.

24

651817R1

BEARING CUP

roller, tapered, 2-21/64" OD, vertical and double fold

4шт.

Part of Wheel Bearing Repair Kit P/N 123096A2

1шт.

Part of Wheel Hub Assembly P/N 606468R21

1шт.

25

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

roller, tapered, 1-1/4" ID, vertical and double fold

4шт.

Part of Wheel Bearing Repair Kit P/N 123096A2

1шт.

26

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

flat, 29/32" x 1-3/4" x 7/64", vertical and double fold

4шт.

27

70120D

SLOTTED NUT,7/8"-14

hex, special, 7/8" NC, vertical and double fold

4шт.

28

432-832

COTTER PIN,1/8" x 2"

vertical and double fold 1/8" x 2"

4шт.

29

224066C1

HUB CAP

wheel, vertical and double fold

4шт.

123096A2

WHEEL BEARING KIT

repair, Includes: Ref. 21 P/N 594702R91, P/N 594703R1, and Ref. 22, 23, 24 and 25

4шт.

Выбрано товаров: 38
