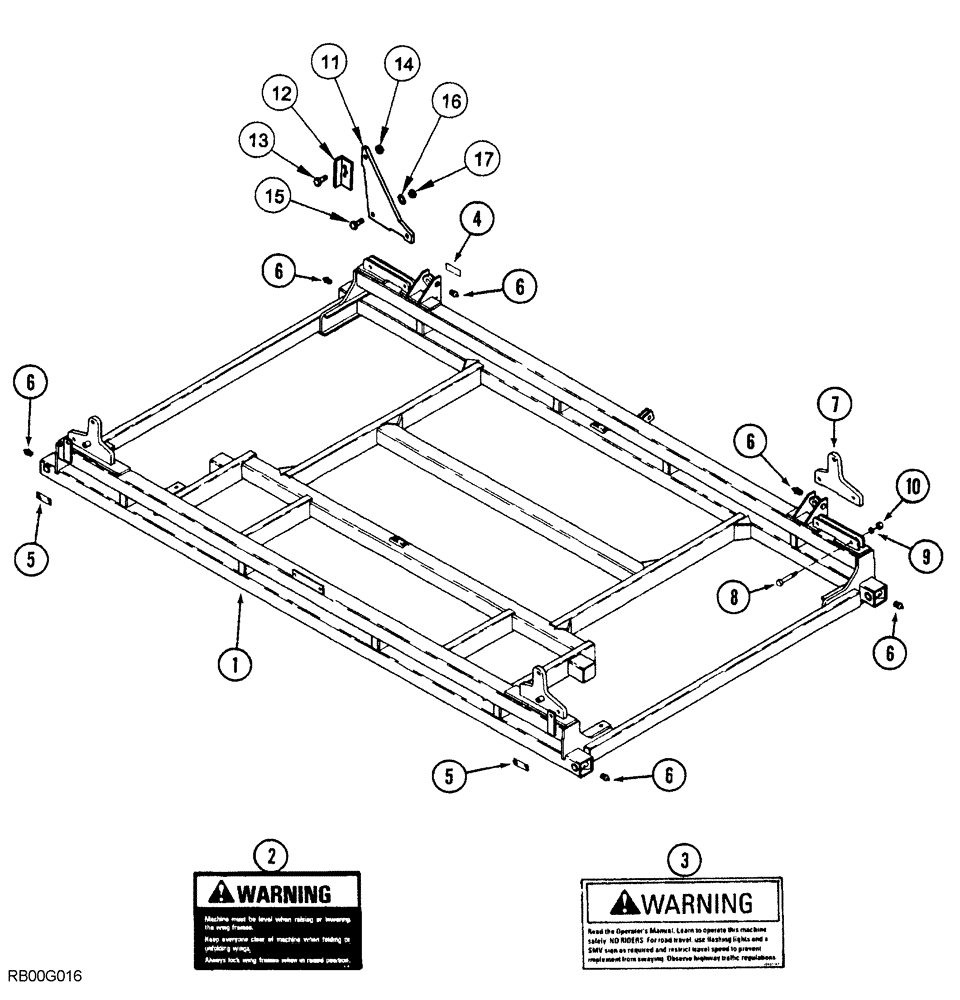

Запчасти Case IH 5850 (09-06) - MAIN FRAME, VERTICAL FOLD AND DOUBLE FOLD, 29 FOOT THROUGH 53 FOOT WIDE (09) - CHASSIS

1

351607A1

FRAME ASSY

main

1шт.

2

810170C2

PRODUCT GRAPHIC

DECAL warning, machine must be level

2шт.

3

220321A1

WARNING DECAL

warning, read the operator's manual

1шт.

4

1284365C2

REFLECTOR

amber

1шт.

5

1284374C1

REFLECTOR,Reflector Red

red

2шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

7

141631A3

ANCHOR

cylinder, 49 through 53 foot wide only

2шт.

8

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

9

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

10

425-1012

NUT,3/4"-10, G5

4шт.

11

303596A1

PLATE

wing support, vertical fold only

2шт.

12

303598A1

PLATE

ANGLE wing brace, vertical fold only

4шт.

13

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

BOLT hex, 5/8" NC x 2-3/4"

2шт.

14

231-42410

LOCK NUT,5/8"-11, GB

hex, 5/8" NC

2шт.

15

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4" NC x 3"

4шт.

16

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

17

425-1012

NUT,3/4"-10, G5

4шт.
