(09-04) - MAIN FRAME, FLAT FOLD, 19 FOOT THROUGH 27 FOOT WIDE

Запчасти Case IH 5850 (09-04) - MAIN FRAME, FLAT FOLD, 19 FOOT THROUGH 27 FOOT WIDE (09) - CHASSIS

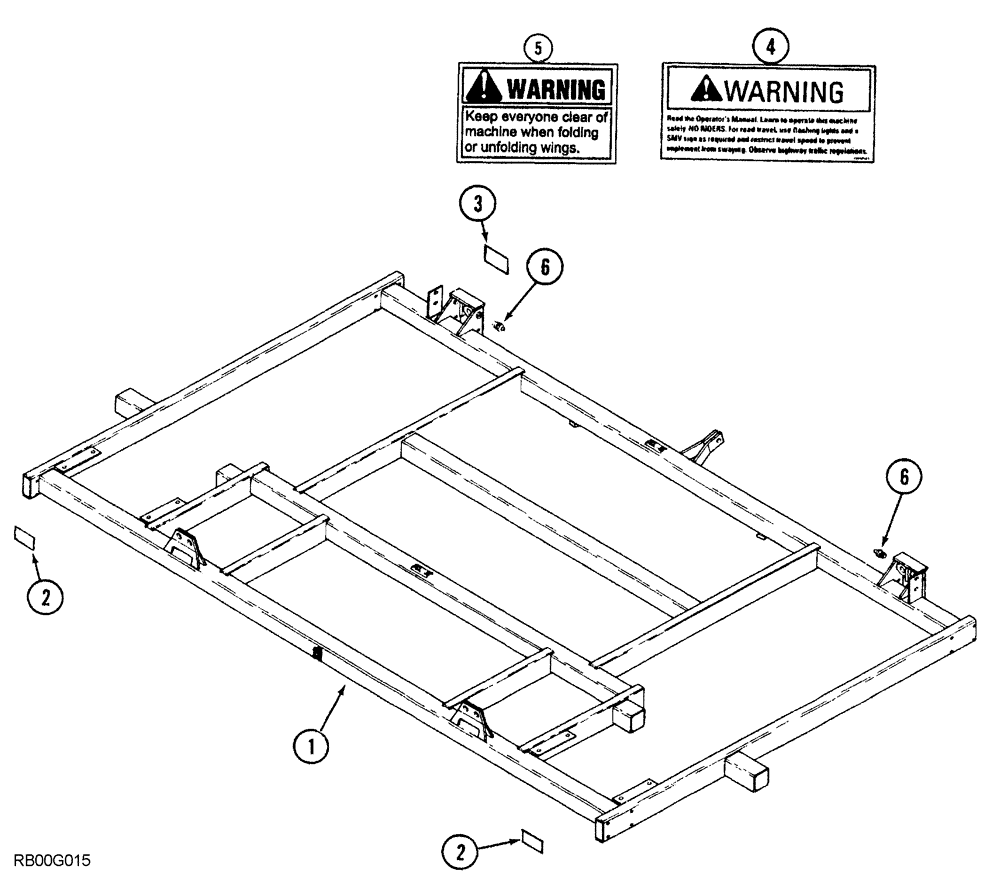

Схема запчастей Case IH 5850 - (09-04) - MAIN FRAME, FLAT FOLD, 19 FOOT THROUGH 27 FOOT WIDE (09) - CHASSIS
5
2
1
6
3
6
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

176434A1

FUNNEL

FRAME ASSEMBLY main, 13 foot wide

1шт.

2

1284374C1

REFLECTOR,Reflector Red

red

2шт.

3

1284365C2

REFLECTOR

amber

1шт.

4

220321A1

WARNING DECAL

warning, read the operator's manual

1шт.

5

59051C3

WARNING DECAL

warning, keep everyone clear of machine when folding or unfolding wings

1шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.
