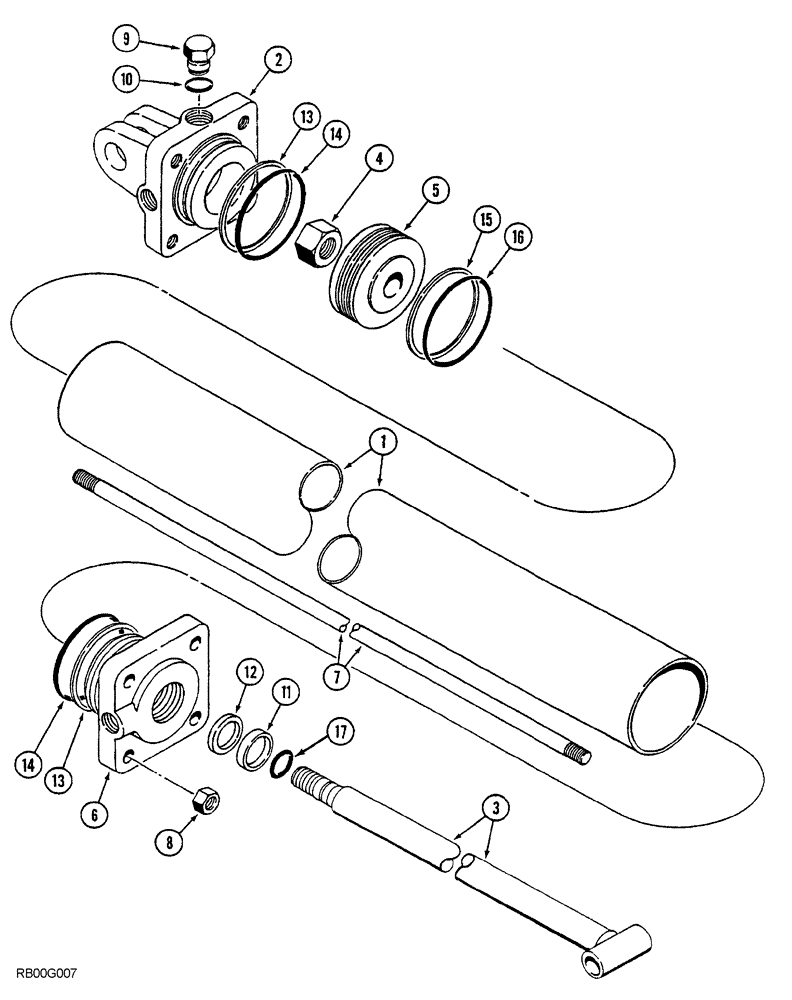

Запчасти Case IH 5850 (08-34) - CYLINDER ASSEMBLY, 1285753C94 (08) - HYDRAULICS

1285753C94

CYLINDER

ASSEMBLY, 89 mm/3-1/2" ID x 864 mm/34" stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

1272825C1

HEAD

cylinder, two ports

1шт.

3

1285955C1

ROD

piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

85179C1

PISTON

cylinder

1шт.

6

1272826C1

HEAD

GLAND cylinder

1шт.

7

1285832C1

TIE-ROD

cylinder tie

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

4шт.

9

214389

PLUG,3/4" - 16 ORB

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N 84919C2

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Seal Kit P/N 84919C2

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of Seal Kit P/N 84919C2

1шт.

13

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland O-ring

2шт.

Part of Seal Kit P/N 84919C2

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING end cap and gland

2шт.

Part of Seal Kit P/N 84919C2

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Kit P/N 84919C2

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of Seal Kit P/N 84919C2

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of Seal Kit P/N 84919C2

1шт.

84919C2

GASKET KIT

seal, Includes: Ref. 10, 11, 12, 13, 14, 15, 16 and 17

1шт.
