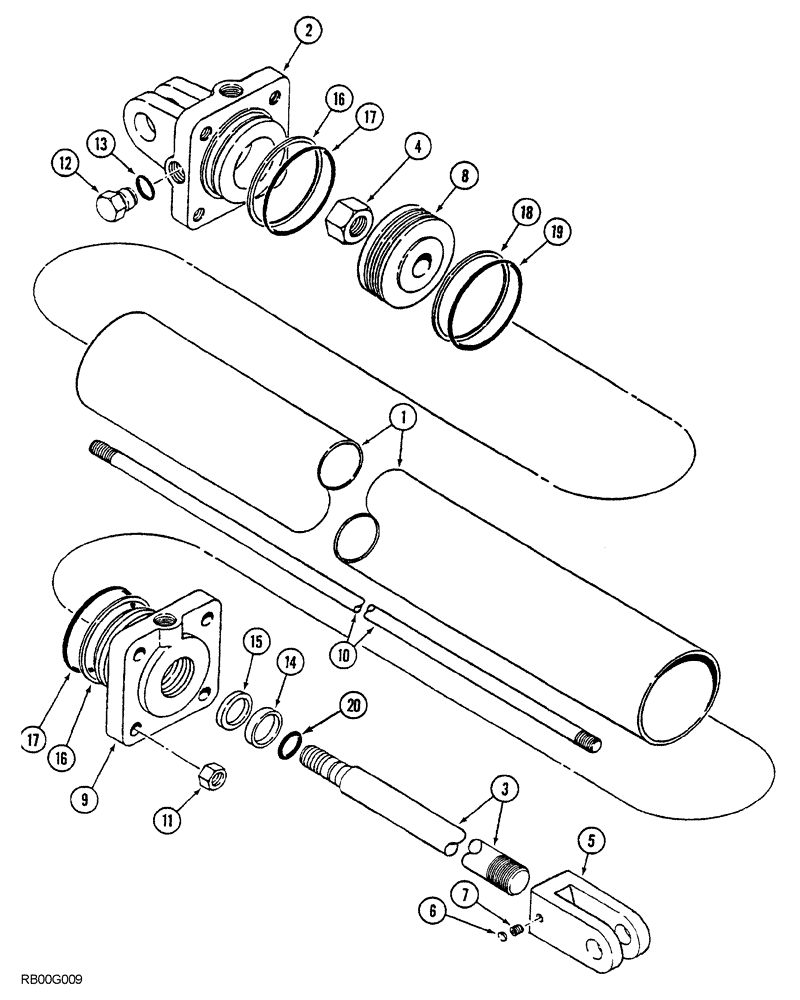

Запчасти Case IH 5850 (08-30) - CYLINDER ASSEMBLY, 1272149C92 (08) - HYDRAULICS

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY, 89 mm/3-1/2" ID x 406 mm/16" stroke

1шт.

1272149C92R

REMAN-HYD CYLINDER

5850 CASE IH CHISEL PLOW, ASSEMBLY

1шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

1282334C1

HEAD

cylinder

1шт.

3

1282397C1

PISTON ROD

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

145240C1

CLEVIS,1 -1/2" - 12

rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert, nylon

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, cup point, 3/8" NC x 3/8"

1шт.

8

145422C2

PISTON

cylinder

1шт.

9

1282335C1

HEAD

GLAND cylinder

1шт.

10

1282287C1

TIE-ROD,1/2" - 13 x 28.656"

BOLT cylinder tie

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N 79978C2

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Seal Kit P/N 79978C2

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of Seal Kit P/N 79978C2

1шт.

16

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland O-ring

2шт.

Part of Seal Kit P/N 79978C2

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING end cap and gland

2шт.

Part of Seal Kit P/N 79978C2

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Kit P/N 79978C2

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of Seal Kit P/N 79978C2

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of Seal Kit P/N 79978C2

1шт.

79978C2

SEAL KIT

Includes: Ref. 13, 14, 15, 16, 17, 18, 19 and 20

1шт.
