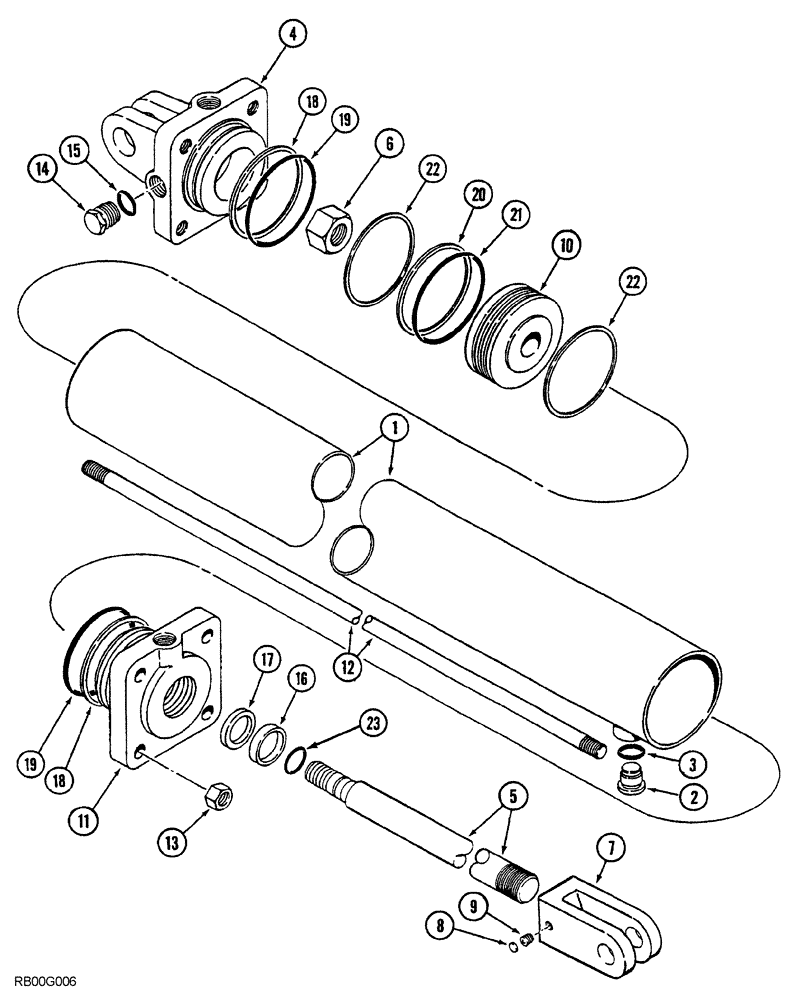

Запчасти Case IH 5850 (08-26) - CYLINDER ASSEMBLY, 1282328C92 (08) - HYDRAULICS

1282328C92

CYLINDER ASSY.

95 mm/3-3/4" ID x 203 mm/8" stroke

1шт.

87423766R

REMAN-HYD CYLINDER

95 mm/3-3/4" ID x 203 mm/8" stroke

1шт.

87423766C

CORE-HYD CYLINDER

Return Number

1шт.

1978386C1

HYD TUBE

cylinder

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N 80115C2

1шт.

4

1285799C1

HEAD

GLAND cylinder

1шт.

5

1267056C1

ROD

piston

1шт.

6

232-46314

LOCK NUT,7/8"-14, GC

1шт.

7

1267057C1

CLEVIS,3/8" - 16

rod end

1шт.

8

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert, nylon

1шт.

9

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, cup point, 3/8" NC x 3/8"

1шт.

10

92520C1

PISTON

cylinder

1шт.

11

1285798C1

END

GLAND cylinder

1шт.

12

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT cylinder tie

4шт.

13

425-1010

NUT,5/8"-11, G5

4шт.

14

214389

PLUG,3/4" - 16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N 80115C2

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Seal Kit P/N 80115C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of Seal Kit P/N 80115C2

1шт.

18

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland O-ring

2шт.

Part of Seal Kit P/N 80115C2

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING end cap and gland

2шт.

Part of Seal Kit P/N 80115C2

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Kit P/N 80115C2

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of Seal Kit P/N 80115C2

1шт.

22

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of Seal Kit P/N 80115C2

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of Seal Kit P/N 80115C2

1шт.

80115C2

SEAL KIT

KIT, Includes: Ref. 3, 15, 16, 17, 18, 19, 20, 21, 22 and 23.

1шт.
