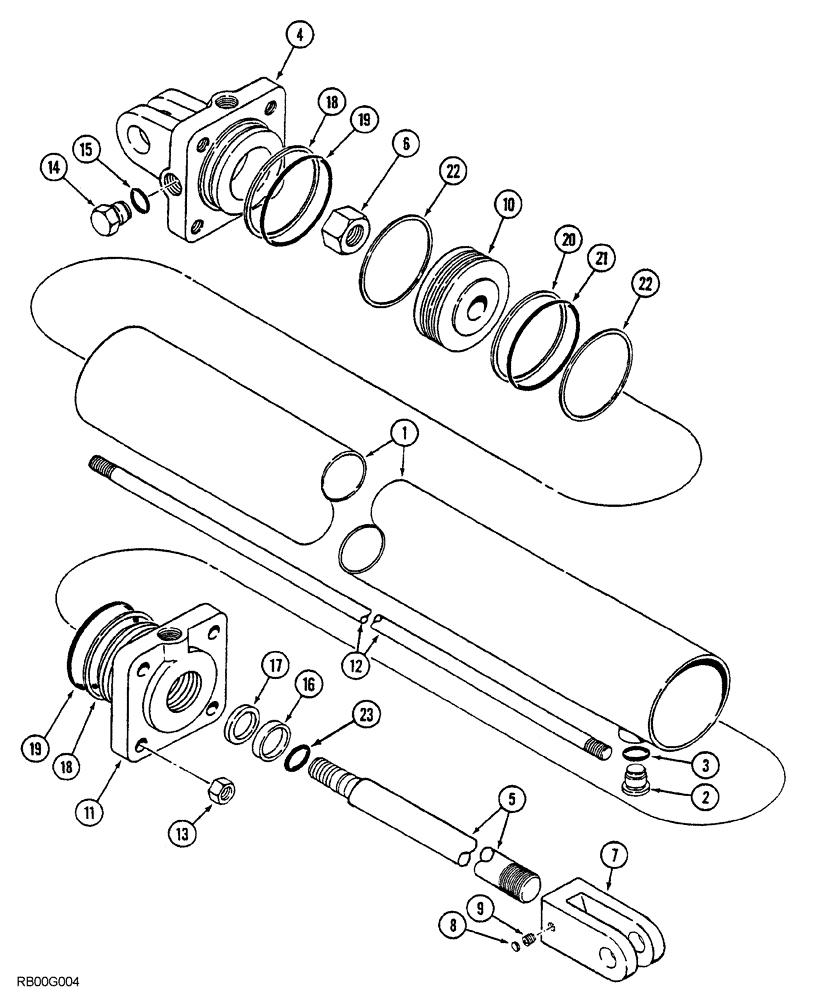

Запчасти Case IH 5850 (08-24) - CYLINDER ASSEMBLY, 1282324C93 (08) - HYDRAULICS

1282324C93

CYLINDER

ASSEMBLY, 89 mm/3-1/2" ID x 203 mm/8" stroke

1шт.

84255910R

REMAN-HYD CYLINDER

5850, Reman For New P/N 1282324C93

1шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

145424C2

HYD TUBE,3.5" ID, 10.167" Length

cylinder

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N 84919C2

1шт.

4

1272825C1

HEAD

cylinder, two ports

1шт.

5

145231C1

PISTON ROD

1шт.

6

232-46314

LOCK NUT,7/8"-14, GC

1шт.

7

145233C1

CLEVIS,1/4" - 12

rod end

1шт.

8

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert, nylon

1шт.

9

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, cup point, 3/8" NC x 3/8"

1шт.

10

85179C1

PISTON

cylinder

1шт.

11

1272826C1

HEAD

GLAND cylinder

1шт.

12

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

TIE ROD BOLT cylinder

4шт.

13

425-108

NUT,1/2" - 13, Gr 5

4шт.

14

214389

PLUG,3/4" - 16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N 84919C2

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Seal Kit P/N 84919C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of Seal Kit P/N 84919C2

1шт.

18

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland O-ring

2шт.

Part of Seal Kit P/N 84919C2

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING end cap and gland

2шт.

Part of Seal Kit P/N 84919C2

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Kit P/N 84919C2

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of Seal Kit P/N 84919C2

1шт.

22

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of Seal Kit P/N 84919C2

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of Seal Kit P/N 84919C2

1шт.

84919C2

GASKET KIT

seal, Includes: Ref. 3, 15, 16, 17, 18, 19, 20, 21, 22 and 23

1шт.
