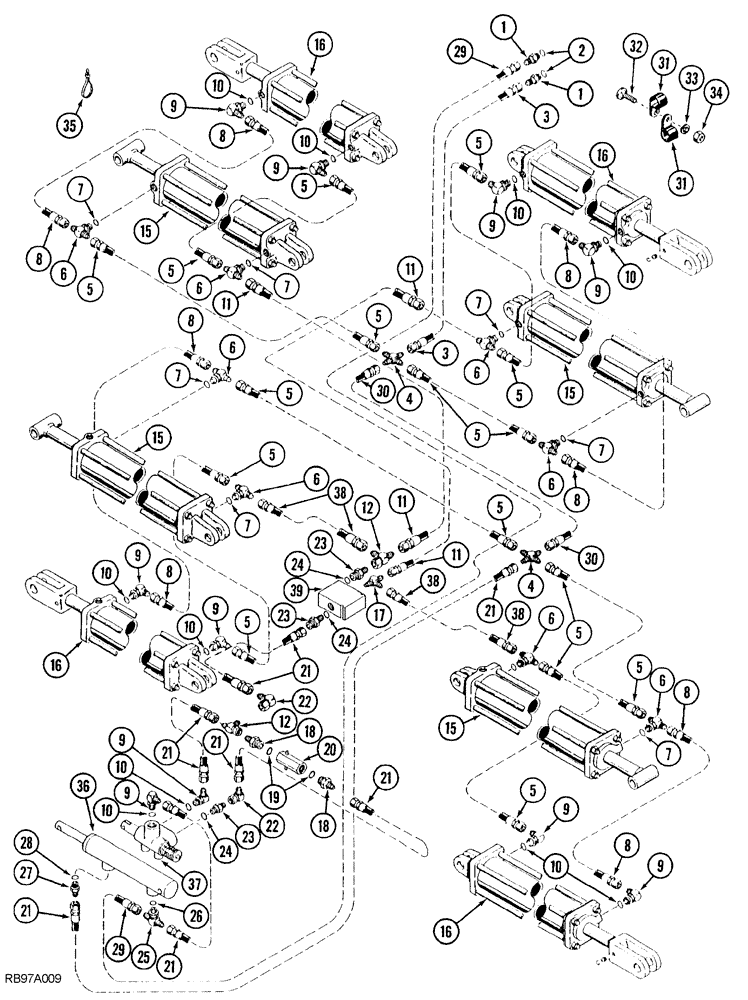

Запчасти Case IH 5850 (08-20) - WING LIFT HYDRAULIC CIRCUIT, DOUBLE FOLD, 49 FOOT THROUGH 53 FOOT WIDE, WITH FLOATING HITCH (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16"-18 flare x 3/4"-16 O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

3

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

5840 mm/230" long

1шт.

4

218-653

4 WAY CONNECTION,9/16"-18, 37 Degree

hydraulic, 9/16"-18 flare

2шт.

5

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

3175 mm/125" long

8шт.

6

218-5192

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

3/4"-16 adj. O-ring branch x 9/16"-18 flare x flare

8шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

191936A1

HOSE

2795 mm/110" long

4шт.

9

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

10шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

129759C2

HYDRAULIC HOSE

4572 mm/180" long

2шт.

12

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

15

224795C92

CYLINDER

ASSEMBLY, 102 mm/4" ID x 864 mm/34" stroke, see Figure 08-36

4шт.

16

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY, 89 mm/3-1/2" ID x 406 mm/16" stroke, see Figure 08-30

4шт.

16

1272149C92R

REMAN-HYD CYLINDER

5850 CASE IH CHISEL PLOW, ASSEMBLY

4шт.

16

1272149C92C

CORE-HYD CYLINDER

Return Number

4шт.

17

218-5581

TEE,9/16"-18, 37 Degree, 3/4"-16, O-Ring Run, 9/16"-18, 37 Degree

9/16"-18 flare branch x flare x 3/4"-16 adj. O-ring

1шт.

18

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

1279338C1

VALVE

check

1шт.

21

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

5шт.

22

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

23

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16"-18 flare x 3/4"-16 O-ring boss

3шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16"-18 adj. O-ring branch x flare x flare

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

29

1284268C1

HYDRAULIC HOSE

8636 mm/340" long

1шт.

30

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

31

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

P type, 7/16" ID

1шт.

31

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P type

1шт.

32

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

33

492-11038

LOCK WASHER,3/8"

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.

35

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

1шт.

36

1286364C91

CYLINDER ASSY.

38 mm/1-1/2" ID x 102 mm/4" stroke, see Figure 08-38

1шт.

37

187904A1

VALVE

transport lockout

1шт.

38

139517C1

HYDRAULIC HOSE

2032 mm/80" long

2шт.

39

178922A1

VALVE

flow divider

1шт.

40

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

Not shown

2шт.

41

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), Not shown

2шт.

42

492-11025

LOCK WASHER,1/4"

Not shown

2шт.

43

425-104

NUT,1/4"-20, Cl 5

Not shown

2шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
