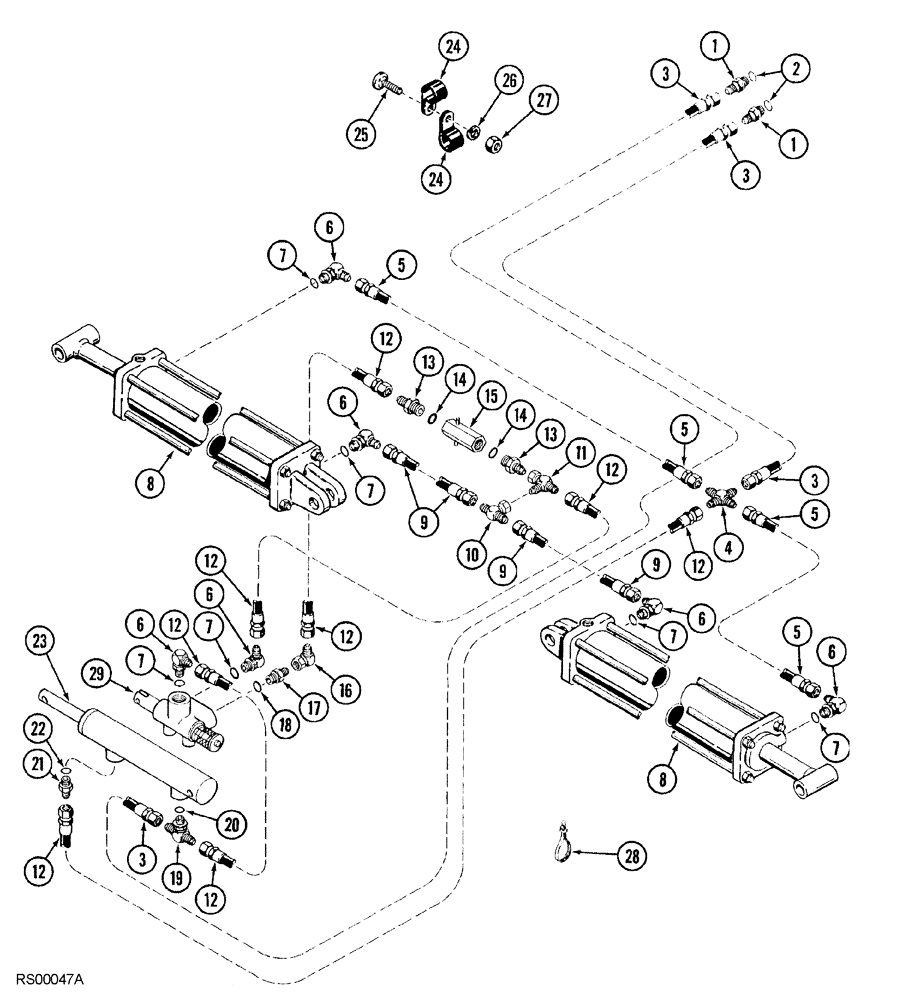

Запчасти Case IH 5850 (08-14) - WING LIFT HYDRAULIC CIRCUIT, VERTICAL FOLD, 29 FOOT THROUGH 41 FOOT WIDE (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16"-18 flare x 3/4"-16 O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

3

191289A1

HYDRAULIC HOSE

7495 mm/295" long

2шт.

4

218-653

4 WAY CONNECTION,9/16"-18, 37 Degree

hydraulic, 9/16"-18 flare

1шт.

5

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

3175 mm/125" long

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

6шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

1285753C94

CYLINDER

ASSEMBLY, 89 mm/3-1/2" ID x 864 mm/34" stroke, 29 foot through 35 foot wide, see Figure 08-34

2шт.

8

224795C92

CYLINDER

ASSEMBLY, 102 mm/4" ID x 864 mm/34" stroke, 37 foot through 41 foot wide, see Figure 08-36

2шт.

9

139517C1

HYDRAULIC HOSE

2032 mm/80" long

2шт.

10

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

9/16"-18 swivel x flare x flare

1шт.

11

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

12

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

4шт.

13

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(23)

1шт.

15

1279338C1

VALVE

check

1шт.

16

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

17

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16"-18 flare x 3/4"-16 O-ring boss

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16"-18 adj. O-ring branch x flare x flare

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

23

1286364C91

CYLINDER ASSY.

38 mm/1-1/2" ID x 102 mm/4" stroke, see Figure 08-38

1шт.

24

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

P type, 7/16" ID

1шт.

24

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P type

1шт.

25

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.

28

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

1шт.

29

187904A1

VALVE

transport lockout

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
