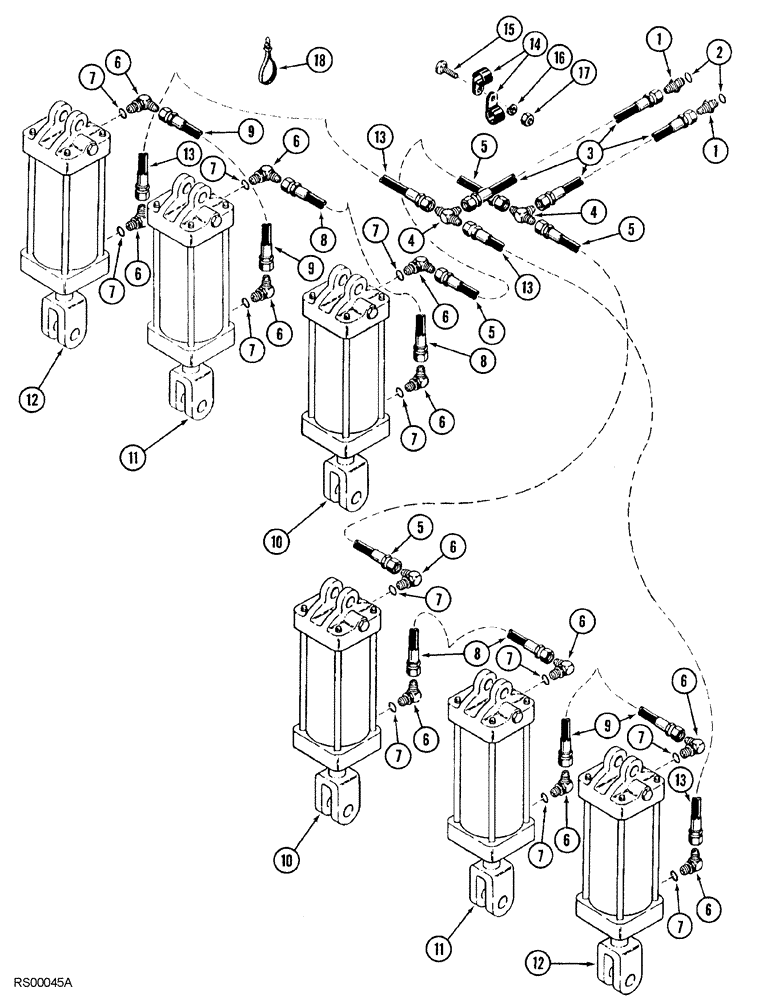

Запчасти Case IH 5850 (08-10) - DEPTH CONTROL HYDRAULIC CIRCUIT, DOUBLE FOLD, 49 FOOT THROUGH 53 FOOT WIDE (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16"-18 flare x 3/4"-16 O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

133933C2

HYDRAULIC HOSE

6604 mm/260" long, with level lift hitch

2шт.

3

1284266C1

HYDRAULIC HOSE

7747 mm/305" long, with floating hitch

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

9/16"-18 flare branch x flare x flare

2шт.

5

810205C1

HYDRAULIC HOSE,6.35mm ID x 1820mm L, SAE 100R17

1780 mm/70" long

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

12шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

129782C2

HYDRAULIC HOSE

4191 mm/165" long

2шт.

9

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

2415 mm/95" long

2шт.

10

1272485C92

CYLINDER ASSY.

102 mm/4" ID x 203 mm/8" stroke, see Figure 08-28

2шт.

11

1282328C92

CYLINDER ASSY.

95 mm/3-3/4" ID x 203 mm/8" stroke, see Figure 08-26

2шт.

11

87423766R

REMAN-HYD CYLINDER

95 mm/3-3/4" ID x 203 mm/8" stroke, see Figure 08-26

2шт.

11

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

12

1282324C93

CYLINDER

ASSEMBLY 89 mm/3-1/2" ID x 203 mm/8" stroke, see Figure 08-24

2шт.

12

84255910R

REMAN-HYD CYLINDER

ASSEMBLY 89 mm/3-1/2" ID x 203 mm/8" stroke, see Figure 08-24

2шт.

12

84255910C

CORE-HYD CYLINDER

Return Number

2шт.

13

1284290C1

HYDRAULIC HOSE

8130 mm/320" long

2шт.

14

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

P type, 7/16" ID

1шт.

14

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P type

1шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

1шт.
