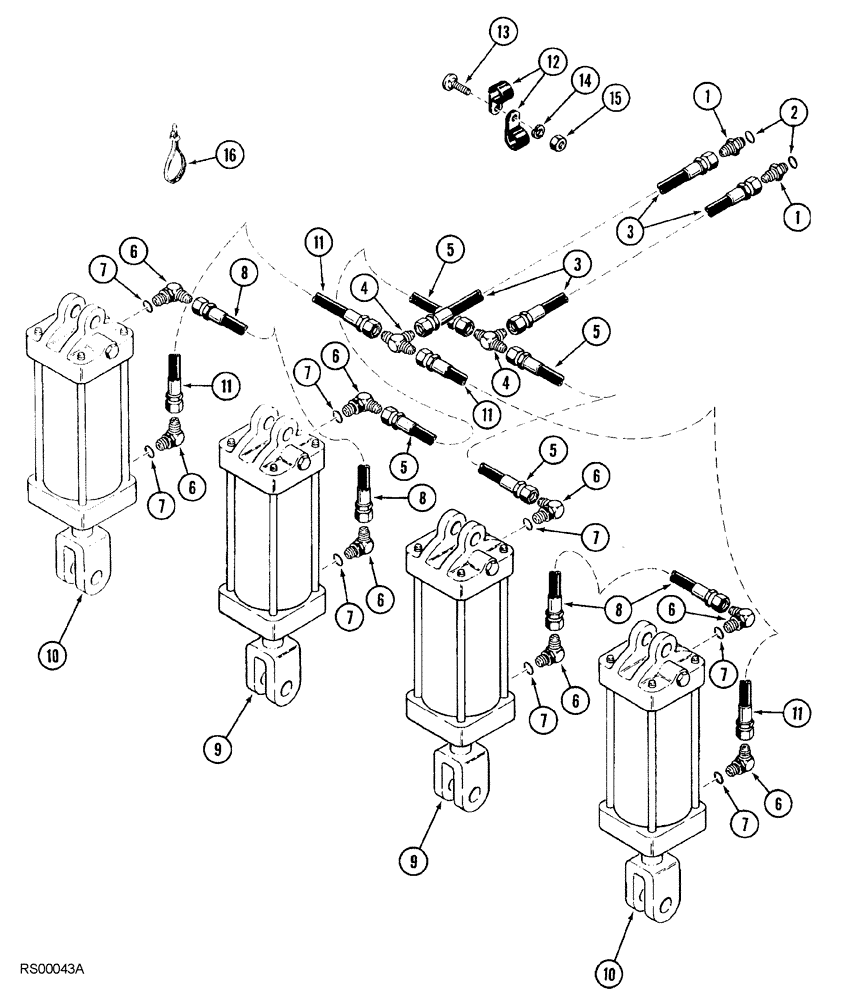

Запчасти Case IH 5850 (08-06) - DEPTH CONTROL HYDRAULIC CIRCUIT, VERTICAL FOLD, 29 FOOT THROUGH 41 FOOT WIDE (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16"-18 flare x 3/4"-16 O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

133933C2

HYDRAULIC HOSE

6604 mm/260" long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

9/16"-18 flare branch x flare x flare

2шт.

5

810205C1

HYDRAULIC HOSE,6.35mm ID x 1820mm L, SAE 100R17

1780 mm/70" long

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

8шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

2415 mm/95" long, 29 foot wide

2шт.

8

1284369C1

HYDRAULIC HOSE

3300 mm/130" long, 31 foot through 35 foot wide

2шт.

8

129782C2

HYDRAULIC HOSE

4191 mm/165" long, 37 foot through 41 foot wide

2шт.

9

1272485C92

CYLINDER ASSY.

102 mm/4" ID x 203 mm/8" stroke, see Figure 08-28

2шт.

10

1282328C92

CYLINDER ASSY.

95 mm/3-3/4" ID x 203 mm/8" stroke, see Figure 08-26

2шт.

10

87423766R

REMAN-HYD CYLINDER

95 mm/3-3/4" ID x 203 mm/8" stroke, see Figure 08-26

2шт.

10

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

11

1284303C1

HYDRAULIC HOSE

3683 mm/145" long, 29 foot wide

2шт.

11

1284256C1

HYDRAULIC HOSE,9.52 mm ID x 4955.00 mm

31 foot through 35 foot wide

2шт.

11

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

5840 mm/230" long, 37 foot through 41 foot wide

2шт.

12

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

P type, 7/16" ID

1шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P type

1шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

1шт.
