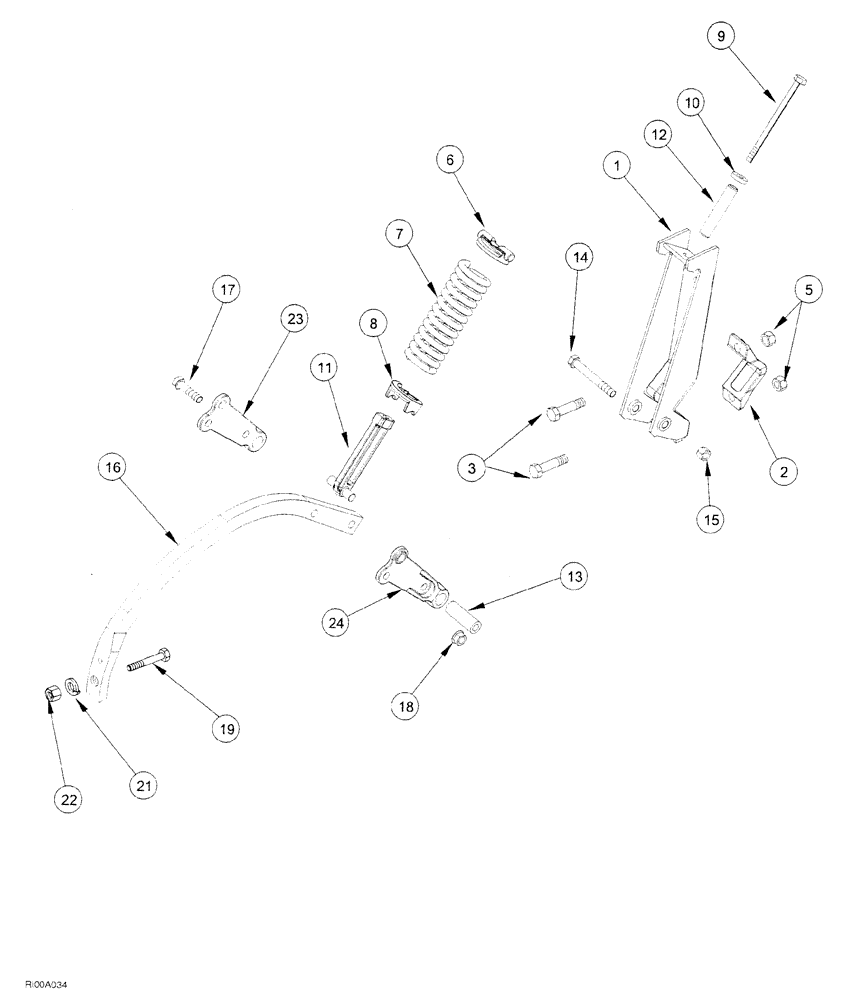

Запчасти Case IH 5800 (9-93A) - SHANK ASSEMBLY - S/N CKB0020050, CKB0020142 & CKB0020153 AND AFTER (18) - MISCELLANEOUS

304669A1

SHANK ASSEMBLY - 400 pound trip pressure

1шт.

304670A1

SHANK ASSEMBLY - 600 pound trip pressure

1шт.

1

293596A1

BRACKET

BRACKET - head

1шт.

2

300538A1

BRACKET

CLAMP - bracket

1шт.

3

413-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

BOLT - hex, 7/8 NC x 3-1/2 inch

2шт.

5

425-1014

NUT,7/8"-9, G5

2шт.

6

293785A1

PIVOT

PIVOT - spring

1шт.

7

109018A1

SPRING

SPRING - trip, 400 pound trip pressure

1шт.

7

127680A1

SPRING

SPRING - trip, 600 pound trip pressure

1шт.

8

300602A1

BASE

PLUG - spring

1шт.

9

109741A1

BOLT

BOLT - tension

1шт.

10

337949A1

WASHER

WASHER - wear

1шт.

11

293781A1

BRACKET

BRACKET - tension

1шт.

12

128530A2

BUSHING,19.8mm ID x 28.6mm OD x 146mm L

BUSHING - wear

1шт.

13

292646A1

SLEEVE,19.8mm ID x 34.85mm OD x 100mm L

BUSHING - wear

1шт.

14

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.

15

232-41412

LOCK NUT,3/4"-10, GC

1шт.

16

292881A1

SHANK

SHANK - chisel

1шт.

17

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

BOLT - hex, 3/4 NC x 3 inch

2шт.

18

231-51412

FLANGE NUT,Flg, USR, 3/4"-10

2шт.

19

419-3840

CARRIAGE BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

BOLT - plow, 1/2 NC x 2-1/2 inch

2шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

2шт.

23

316332A1

PLATE

PIVOT - shank, left-hand

1шт.

24

316333A1

PLATE

PIVOT - shank, right-hand

1шт.
