Запчасти Case IH 5800 (9-94) - GROUND WORKING TOOLS (09) - CHASSIS/ATTACHMENTS

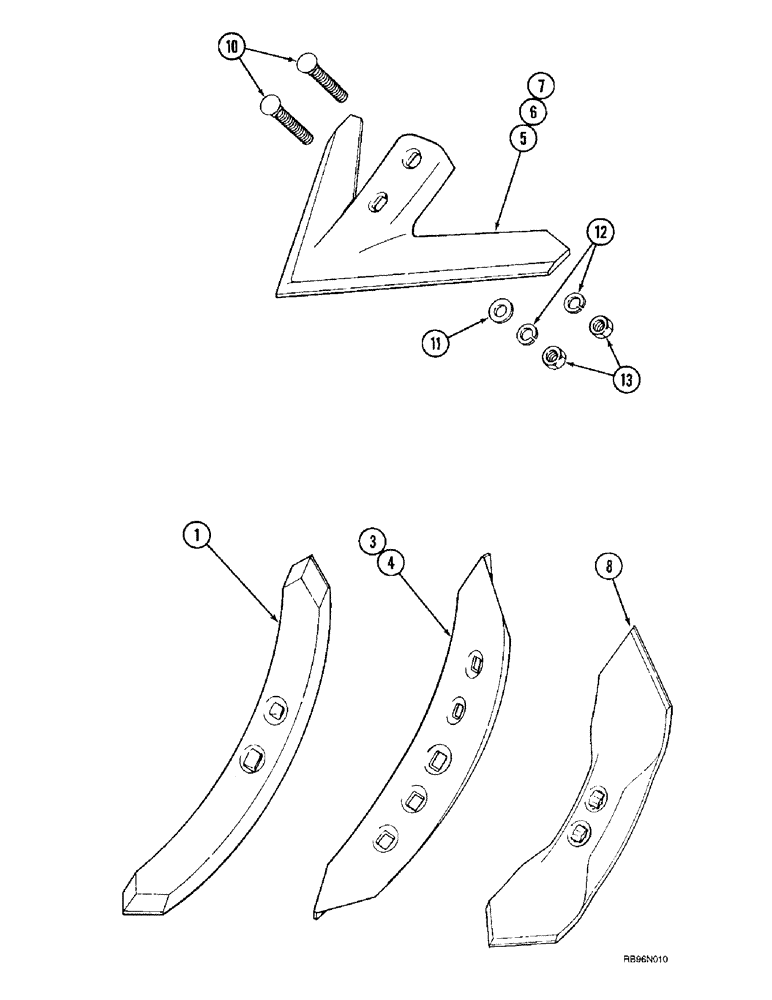

Схема запчастей Case IH 5800 - (9-94) - GROUND WORKING TOOLS (09) - CHASSIS/ATTACHMENTS
4
1
7
12
13
6
8
11
3
5
10

Артикул

Название

Примечание

Количество

1

601986R1

POINT

- 2 (51) wide x 5/8 inch (16 mm) thick, reversible chisel (If used)

1шт.

3

594545R1

SHOVEL

- 3 inch (76 mm) wide, twisted, left-hand (If used)

1шт.

4

594546R1

SHOVEL

- 3 inch (76 mm) wide, twisted, right-hand (If used)

1шт.

5

133766A1

SWEEP

10"

1шт.

6

133768A1

SWEEP

14"

1шт.

7

133769A1

SWEEP

16"

1шт.

8

602595R3

SHOVEL

4-1/2 INCH REVERSIBLE

1шт.

10

419-2840

PLOW BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

BOLT - plow, 1/2 NC x 2-1/2 inch

1шт.

11

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

Выбрано товаров: 11
