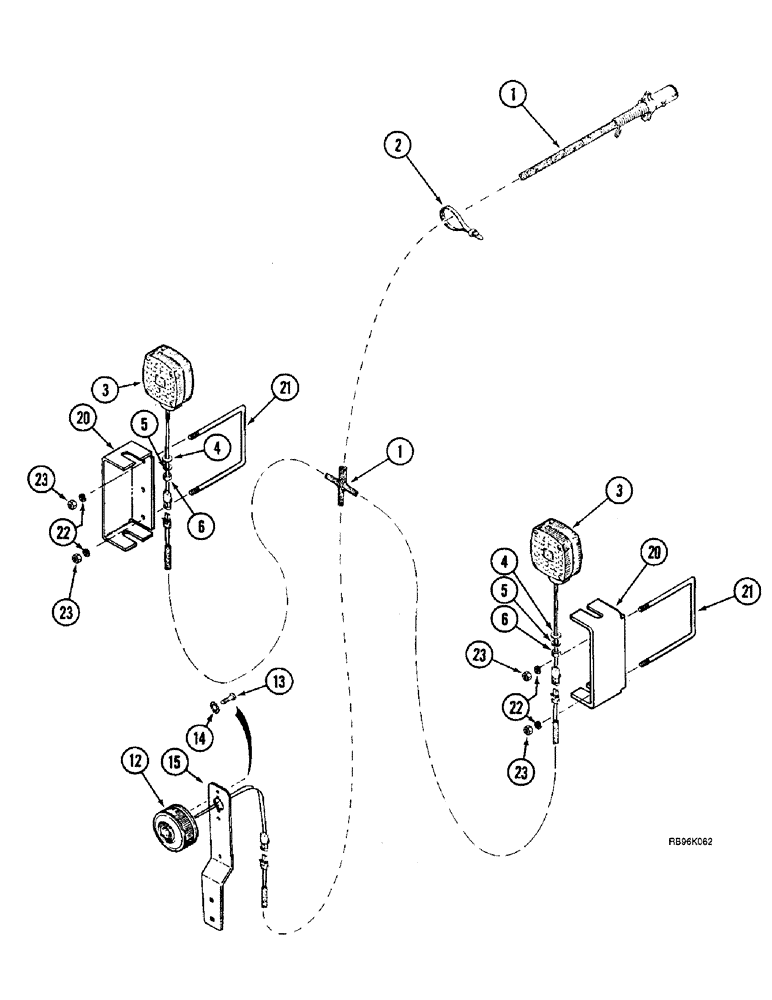

Запчасти Case IH 5800 (4-02) - WIRING HARNESS AND LAMP MOUNTING, MOUNTED (04) - ELECTRICAL SYSTEMS

1

92061C1

HARNESS

- lighting

1шт.

2

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

14шт.

3

91913C91

LIGHT

LAMP ASSEMBLY - turn signal (See Page 4-9)

2шт.

4

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

12

91986C91

LIGHT

LAMP ASSEMBLY - tail (See Page 4-11)

1шт.

13

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch

2шт.

14

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.

15

1978653C1

SUPPORT

BRACKET - lamp mounting

1шт.

20

1344785C1

BRACKET

- turn signal lamp mounting

2шт.

21

810099C1

BOLT,U, 1/4" - 20 x 4.75"

U-BOLT - mounting bar

4шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

23

425-104

NUT,1/4"-20, Cl 5

4шт.
