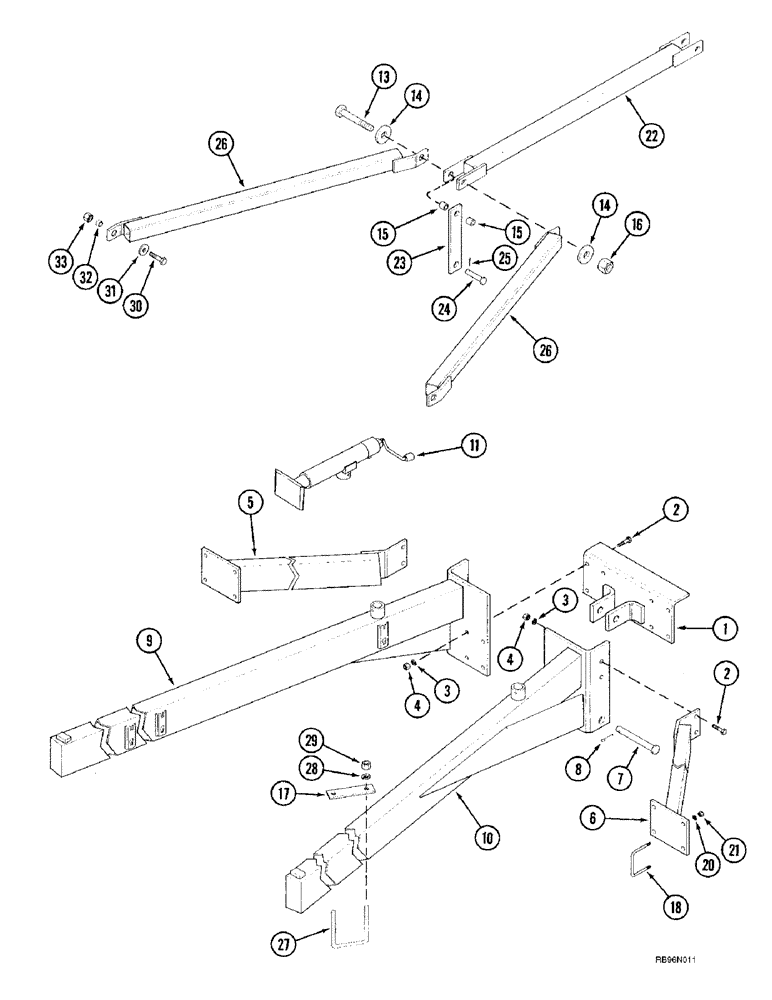

Запчасти Case IH 5800 (9-80) - LEVEL LIFT HITCH, BRACES AND BEAMS, VERTICAL FOLD AND DOUBLE (09) - CHASSIS/ATTACHMENTS

1

1284134C1

ANGLE

BRACKET - hitch connecting

1шт.

2

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

12шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

4

425-1010

NUT,5/8"-11, G5

12шт.

5

142346A1

HITCH ASSY

BRACE - hitch, outer, left-hand

1шт.

6

142347A1

HITCH ASSY

BRACE - hitch, outer, right-hand

1шт.

7

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - clevis, 1-1/4 x 3-1/4 inch, hardened

2шт.

8

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

9

97700C1

TRAILER HITCH

BEAM - hitch, left-hand

1шт.

10

97701C1

TRAILER HITCH

BEAM - hitch, right-hand

1шт.

11

121557A1

JACK ASSY.

JACK - hitch

1шт.

13

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

- hex, 1 NC x 6 inch

1шт.

14

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 5/32 inch

2шт.

15

571823R1

SPACER,1 1/4" Tube x 1"

- front connecting tube

2шт.

16

231-41116

NUT,1"-8, GB

NUT - hex, self-locking, 1 inch NC

1шт.

17

812865C1

BAR

- clamp

8шт.

18

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

4шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

21

425-1010

NUT,5/8"-11, G5

8шт.

22

1284408C1

TUBE,1330 mm Length

- front connecting

1шт.

23

1284496C1

BAR

- intermediate pivot

1шт.

24

439-51644

HEADED PIN,1" x 2 3/4", G5

PIN - headed, 1 x 2-3/4 inch

1шт.

25

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

26

143019A1

TUBE,2353 mm Length

- rear connecting

2шт.

27

812864C1

U-BOLT,5/8" - 11 x 11.6"

- 5/8 NC x 11-5/8 inch

8шт.

28

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

29

425-1010

NUT,5/8"-11, G5

16шт.

30

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

31

495-81045

WASHER,25/32" x 1 3/4" x .179"

- flat, 25/32 x 1-3/4 x 11/64 inch

2шт.

32

1333812C1

BUSHING,19.3mm ID x 25.4mm OD x 15mm L

- rear connecting tube

2шт.

33

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

2шт.
