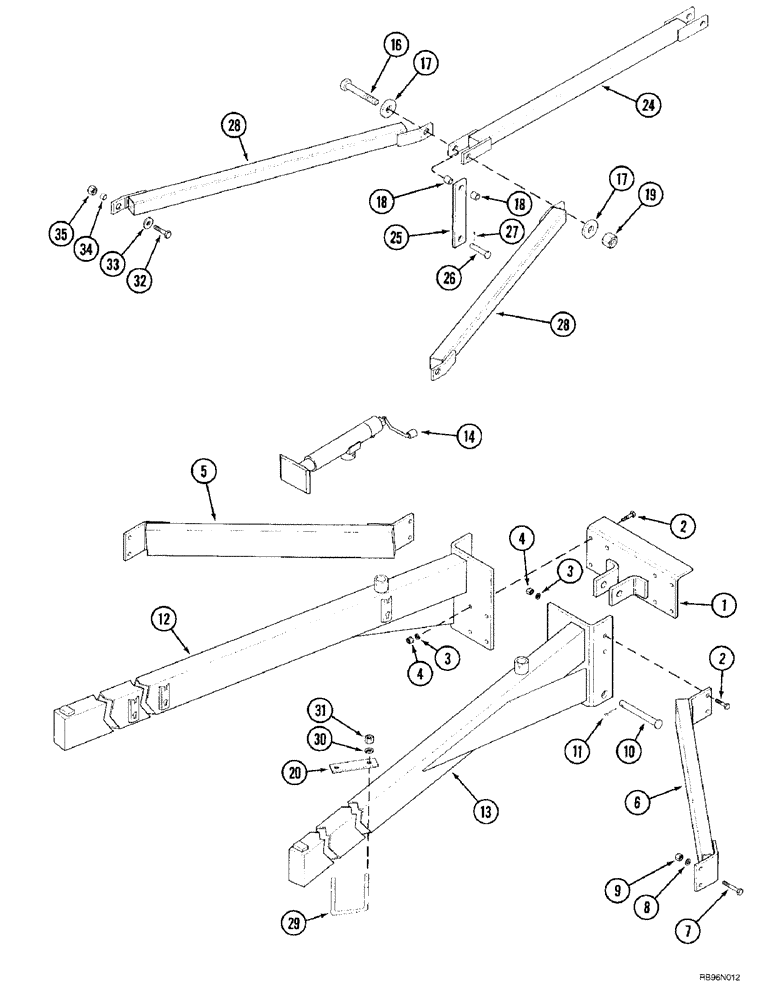

Запчасти Case IH 5800 (9-78) - LEVEL LIFT HITCH, BRACES AND BEAMS, FLAT FOLD (09) - CHASSIS/ATTACHMENTS

1

1284134C2

ANGLE

BRACKET - hitch connecting

1шт.

2

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

1960527C1

TUBE ASSY.

BRACE - hitch, outer, left-hand (25 foot and 27 foot wide only)

1шт.

6

1960528C1

TUBE ASSY.

BRACE - hitch, outer, right-hand (25 foot and 27 foot wide only)

1шт.

7

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

4шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - clevis, 1-1/4 x 3-1/4 inch, hardened

2шт.

11

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

12

97700C1

TRAILER HITCH

BEAM - hitch, left-hand

1шт.

13

97701C1

TRAILER HITCH

BEAM - hitch, right-hand

1шт.

14

121557A1

JACK ASSY.

JACK - hitch

1шт.

16

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

- hex, 1 NC x 6 inch

1шт.

17

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 5/32 inch

2шт.

18

571823R1

SPACER,1 1/4" Tube x 1"

- front connecting tube

2шт.

19

231-41116

NUT,1"-8, GB

NUT - hex, self-locking, 1 inch NC

1шт.

20

812865C1

BAR

- clamp

8шт.

24

1284408C1

TUBE,1330 mm Length

- front connecting

1шт.

25

1284496C1

BAR

- intermediate pivot

1шт.

26

439-51644

HEADED PIN,1" x 2 3/4", G5

PIN - headed, 1 x 2-3/4 inch

1шт.

27

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

28

143019A1

TUBE,2353 mm Length

- rear connecting

2шт.

29

812864C1

U-BOLT,5/8" - 11 x 11.6"

- 5/8 NC x 11-5/8 inch

8шт.

30

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

31

425-1010

NUT,5/8"-11, G5

16шт.

32

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

33

495-81045

WASHER,25/32" x 1 3/4" x .179"

- flat, 25/32 x 1-3/4 x 11/64 inch

2шт.

34

1333812C1

BUSHING,19.3mm ID x 25.4mm OD x 15mm L

- rear connecting tube

2шт.

35

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

2шт.
