(9-74) - QUICK COUPLER HITCH ADAPTER, DIRECT MOUNTED

Запчасти Case IH 5800 (9-74) - QUICK COUPLER HITCH ADAPTER, DIRECT MOUNTED (09) - CHASSIS/ATTACHMENTS

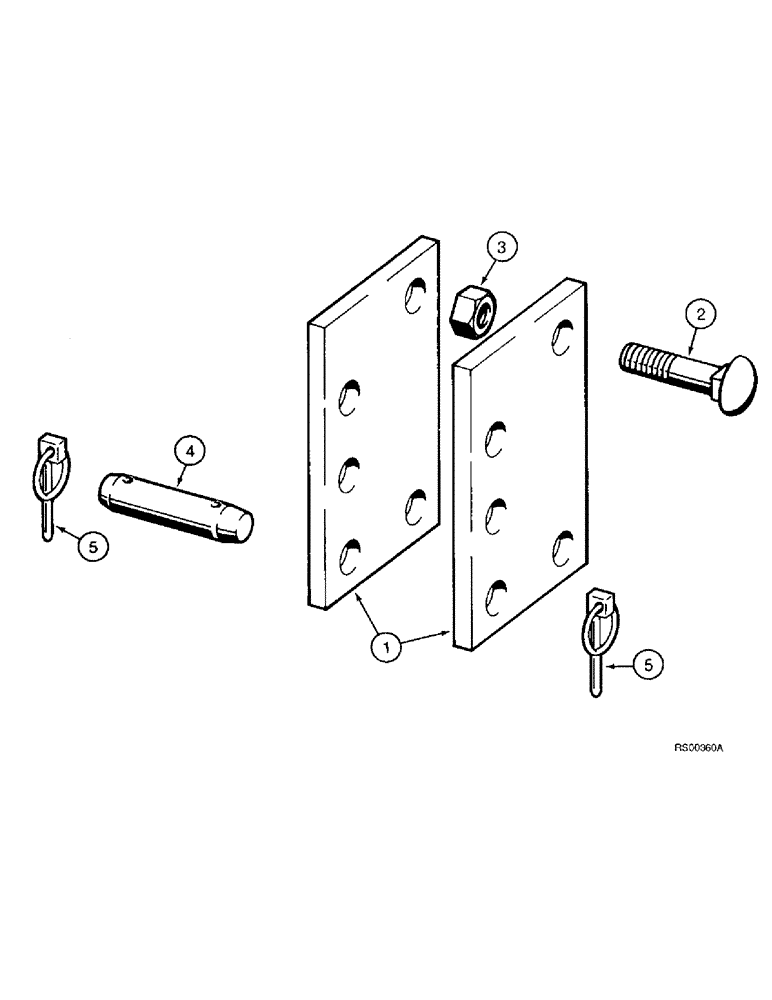

Схема запчастей Case IH 5800 - (9-74) - QUICK COUPLER HITCH ADAPTER, DIRECT MOUNTED (09) - CHASSIS/ATTACHMENTS
1
5
3
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

812031C1

BAR

PLATE - hitch adapter

2шт.

2

433-1232

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 2", Gr 5

BOLT - carriage, 3/4 NC x 2 inch

4шт.

3

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

4

812032C1

PIN

- hitch, center

1шт.

5

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN - click

2шт.
