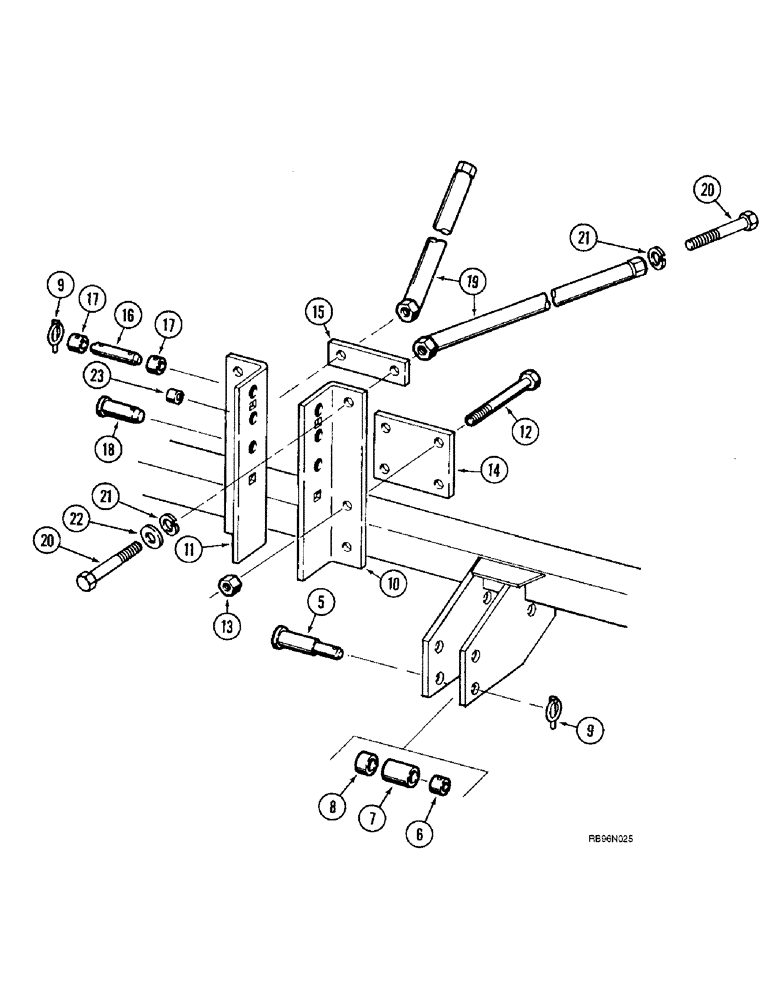

Запчасти Case IH 5800 (9-72) - THREE POINT HITCH, DIRECT MOUNTED (09) - CHASSIS/ATTACHMENTS

5

599799R1

PIN

- hitch, outer

2шт.

6

599800R1

BUSHING

- hitch pin

2шт.

7

599801R1

SPACER

- pin, inner

2шт.

8

599802R1

SPACER

- pin, outer

2шт.

9

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN - click

3-4шт.

10

812002C2

ANGLE

BRACKET - hitch mounting, left-hand

1шт.

11

812011C2

ANGLE

BRACKET - hitch mounting, right-hand

1шт.

12

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

4шт.

13

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

14

812007C1

BAR

PLATE - hitch mounting bracket support

1шт.

15

812024C1

BAR

PLATE - truss rod mounting

1шт.

16

599803R1

PIN

- hitch, center, category 2 hitch and no quick coupler, if used

1шт.

17

599804R1

BUSHING

- center hitch pin, if used

2шт.

18

392211R2

PIN

- center, category 3 hitch and no quick coupler, if used

1шт.

19

251326A1

ROD

- truss, three point hitch

2шт.

20

413-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5

- hex, 1 NC x 2-1/4 inch

4шт.

21

492-11100

LOCK WASHER,1"

1"

4шт.

22

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

2шт.

23

97772C1

BUSHING

- mast

2шт.
