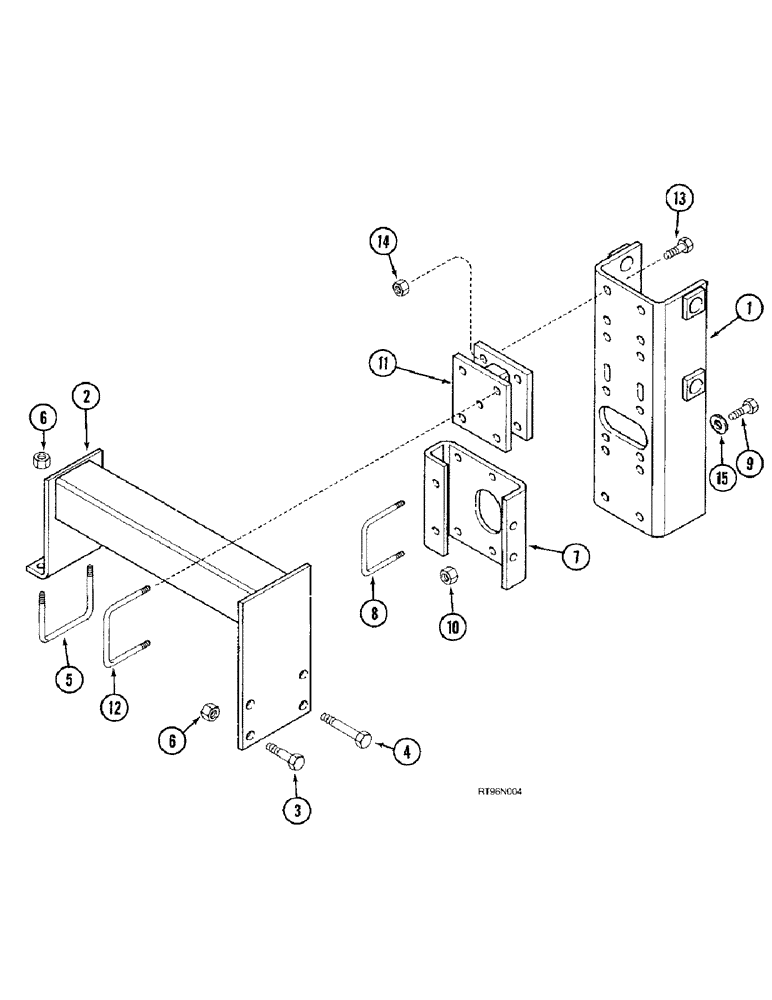

Запчасти Case IH 5800 (9-70) - CASTER WHEEL MOUNTING, 12 FOOT WING VERTICAL FOLD, 6 FOOT (09) - CHASSIS/ATTACHMENTS

1

226538A1

BRACKET

- caster wheel mounting

2шт.

2

138985A1

CASING

TOWER - caster wheel mounting

2шт.

3

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.

4

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

6шт.

5

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

2шт.

6

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

14шт.

7

142351A1

EXTENSION

- mounting bracket

2шт.

8

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

2шт.

9

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

10

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

12шт.

11

140988A1

SPACER

- mounting

2шт.

12

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

4шт.

13

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

14

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

16шт.

15

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.
