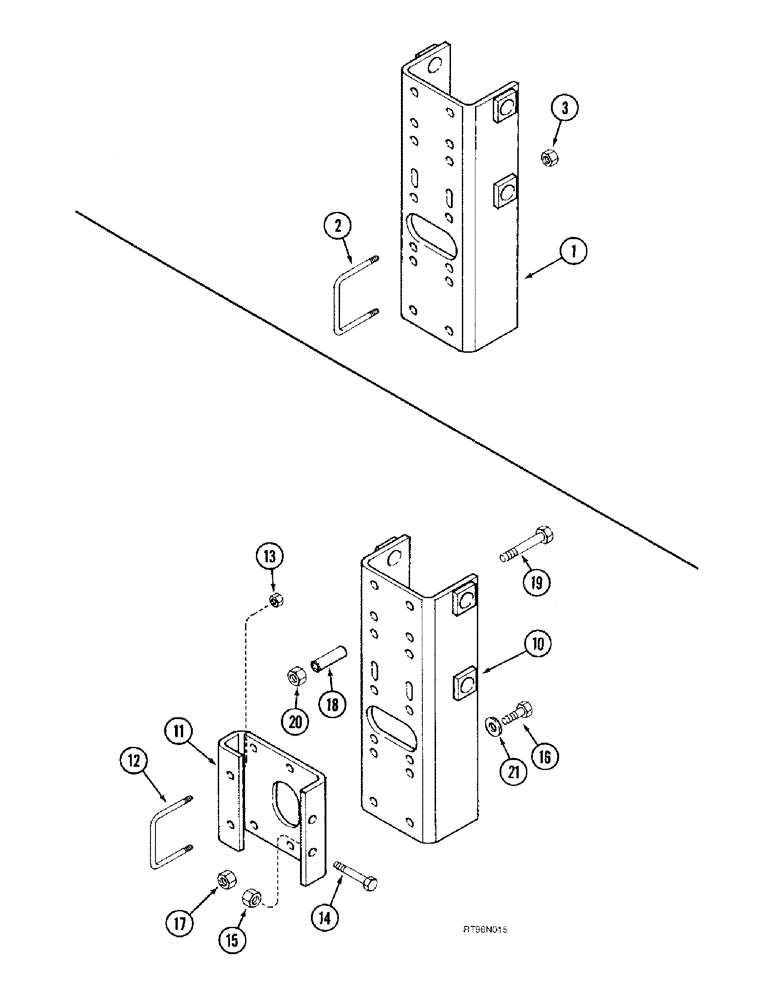

Запчасти Case IH 5800 (9-68) - CASTER WHELL MOUNTING, MAIN FRAME, 12 FOOT PRIMARY WING (09) - CHASSIS/ATTACHMENTS

1

226538A1

BRACKET

- caster wheel mounting

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

8шт.

3

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

16шт.

10

226538A1

BRACKET

- caster wheel mounting

2шт.

11

142351A1

EXTENSION

- mounting bracket

2шт.

12

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

2шт.

13

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

4шт.

14

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

15

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

4шт.

16

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

17

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

8шт.

18

88909C1

TUBE,16.129 mm ID x 22.352 mm OD x 76.2 mm L

SPACER - bracket

4шт.

19

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

20

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

4шт.

21

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.
