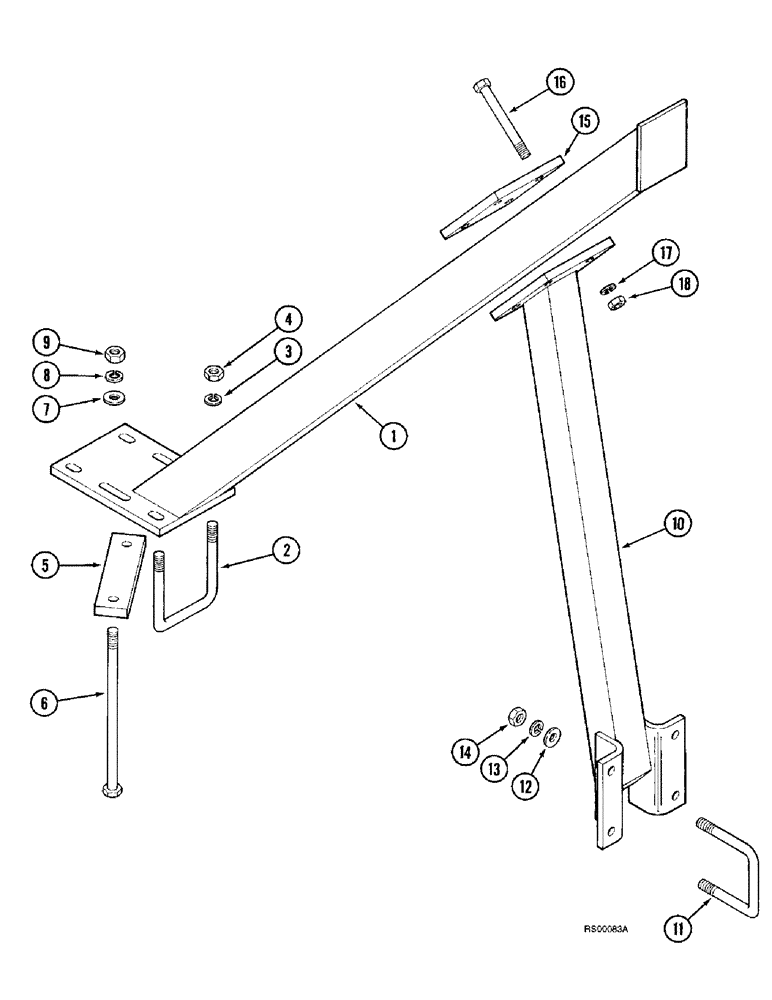

Запчасти Case IH 5800 (9-52) - PRIMARY WING STOP, DOUBLE FOLD, 43 FOOT THROUGH 53 FOOT WIDE (09) - CHASSIS/ATTACHMENTS

1

188226A1

STOP

- primary wing

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC (With level lift hitch)

2шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

425-1010

NUT,5/8"-11, G5

4шт.

5

181759A1

BAR

- clamping (With level lift hitch)

2шт.

6

413-10192

BOLT,Hex, 5/8" - 11 x 12", Gr 5

- hex, 5/8 NC x 12 inch (With level lift hitch)

4шт.

6

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

(With floating hitch) Hex, 5/8"-11 x 6 1/2", G5

8шт.

7

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 1/8 inch

4шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

188230A1

BRACE

- wing stop

2шт.

11

609871R1

BOLT,Wheel, 5/8" - 11 x 3 3/8", Class 2

U-BOLT - 5/8 inch NC

4шт.

12

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 1/8 inch

8шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

14

425-1010

NUT,5/8"-11, G5

8шт.

15

188229A1

LARGE PLATE

PLATE - brace mounting

2шт.

16

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

8шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

18

425-1010

NUT,5/8"-11, G5

8шт.
