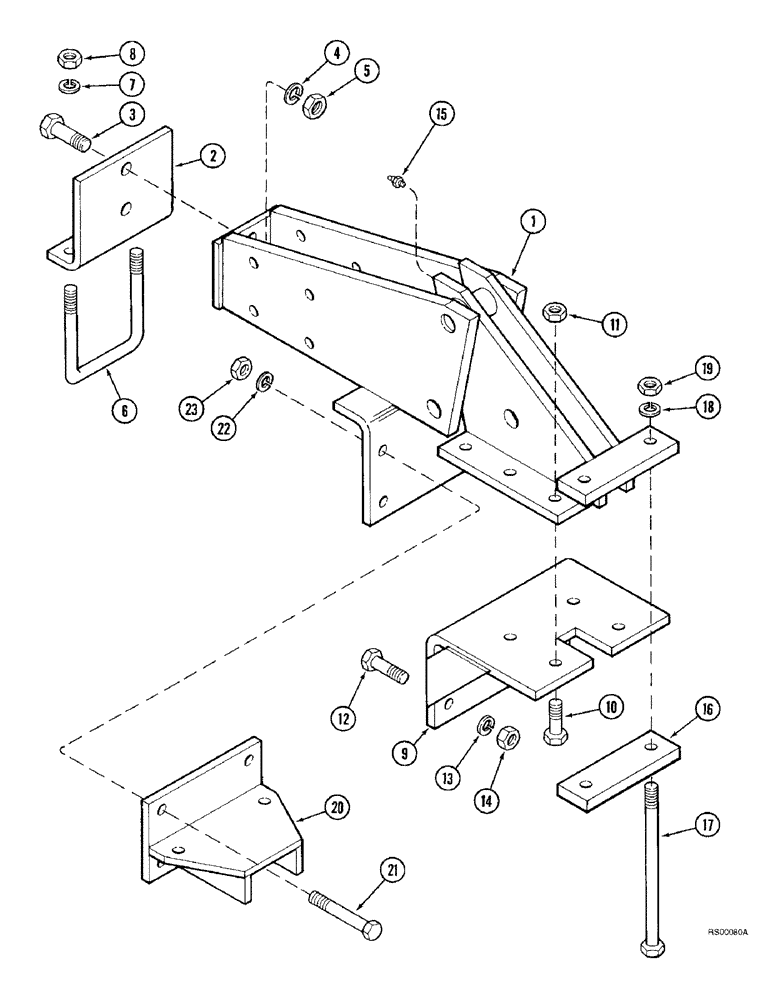

Запчасти Case IH 5800 (9-46) - FRONT SECONDARY WING LIFT HINGE, DOUBLE FOLD - RIGID, 43 (09) - CHASSIS/ATTACHMENTS

1

141060A1

HINGE

- secondary wing lift, front

2шт.

2

140991A2

BAR

ANGLE - hinge support

2шт.

3

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

4

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

5

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

8шт.

6

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

2шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

425-1010

NUT,5/8"-11, G5

4шт.

9

187355A1

LARGE PLATE

SUPPORT - hinge mounting

2шт.

10

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

8шт.

11

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

8шт.

12

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

14

425-1010

NUT,5/8"-11, G5

8шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

16

142354A1

BAR

- mounting

2шт.

17

413-10160

BOLT,Hex, 5/8" - 11 x 10", Gr 5

- hex, 5/8 NC x 10 inch

4шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

19

425-1010

NUT,5/8"-11, G5

4шт.

20

142370A1

STOP

- rigid wing

2шт.

21

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

8шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

23

425-1010

NUT,5/8"-11, G5

8шт.
